Ai-WB2-32S-Kit Development Board - WiFi+Bluetooth 5.0
$4.5000
In stock
SKU
COM-03-087
Volume discounts:
- +25 4 % $4.3200
- +100 6 % $4.2300
- +300 8 % $4.1400
- +500 10 % $4.0500
- +1000 12 % $3.9600
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Ai-WB2-13-Kit Development Board - WiFi+Bluetooth 5.0 Previous

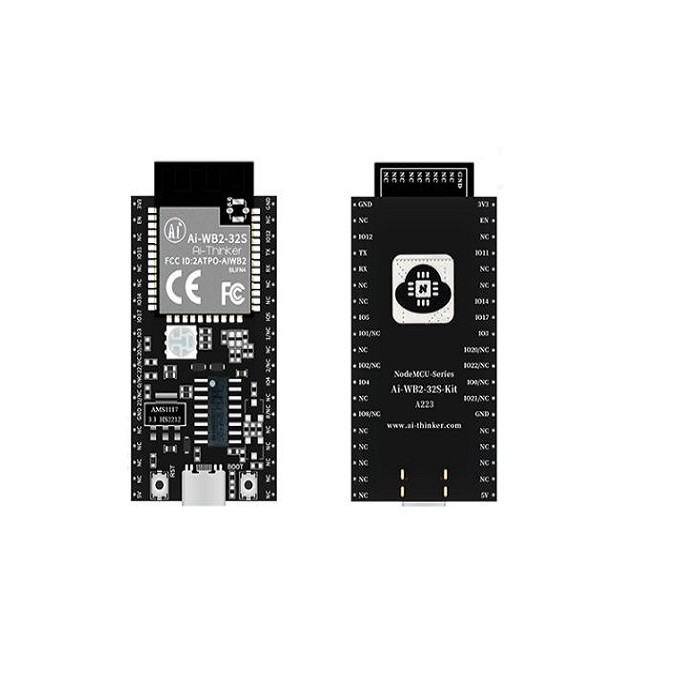

The Ai-WB2-32S-Kit Development Board is designed for the Ai-WB2-32S module from Ai Thinker. It is based on the BL602 chip and supports Wi-Fi 802.11 b/g/n and Bluetooth 5.0 BLE. The board uses a 32-bit RISC CPU and includes 276KB RAM. It offers multiple interfaces for embedded electronics and IoT development. The board also supports AT commands and secondary development in Windows and Linux environments.
Features of Ai-WB2-32S-Kit Development Board - Wi-Fi, Bluetooth 5.0, DIP-38
- DIP-38 package
- Wi-Fi 802.11 b/g/n support
- Bluetooth 5.0 BLE support
- 32-bit RISC CPU
- 276KB RAM
- Low-power operation
- Multiple interface support
- AT command support
- Windows and Linux development support
Specifications of Ai-WB2-32S-Kit Development Board - Wi-Fi, Bluetooth 5.0, DIP-38
- Package: DIP-38
- Processor: 32-bit RISC CPU with 276KB RAM
- Networking: Wi-Fi 802.11 b/g/n and Bluetooth 5.0 (BLE & Mesh)
- Wi-Fi Security: WEP, WPA/WPA2 Personal/Enterprise, WPA3
- Wi-Fi Speed: Up to 72.2 Mbps with 20MHz bandwidth
- Interfaces: SDIO, SPI, UART, PWM, ADC, DAC, PIR, GPIO, and more
- Hardware Security: AES 128/192/256, SHA-1/224/256, PKA, TRNG
- Power Efficiency: Deep sleep mode with 12μA current
- Development Support: AT command support, Windows & Linux environments
- Input voltage: 3.3V
- Dimensions: ---
How to Use Ai-WB2-32S-Kit Development Board - Wi-Fi, Bluetooth 5.0, DIP-38
- Connect the board to your development setup.
- Use the supported interfaces and AT commands for your project.
- Develop in a Windows or Linux environment as needed.
More Info
- Designed for the Ai-WB2-32S module.
- Suitable for IoT and embedded electronics projects.
| MCU/SoC | BL602 |
|---|---|
| Architecture | RISC-V |
| CPU Cores | Single-core |
| Clock Speed (MHz) | 192 MHz |
| Flash | 4 MB |
| SRAM | 276 KB |
| GPIO Pins | GPIO |
| SPI interface Pins | 1 |
| I2C interface Pins | 1 |
| UART interface Pins | 2 |
| USB Ports | 1 |
| Ethernet Support | No |
| ADC Channels | ADC |
| DAC Channels | DAC |
| PWM Channels | PWM |
| Operating Voltage (V) | 3.3V |
| GPIO Voltage (V) | 3.3V |
| Sleep Current (µA) | 12μA |
| Wireless | Bluetooth, Wi-Fi |
| Form Factor | DIP-38 |
| IDE Support | Linux, Windows |
| Input Voltage (V) | 5V |
| Antenna Type | Internal Antenna |
| Bluetooth Ver. | 5 |
