Description:

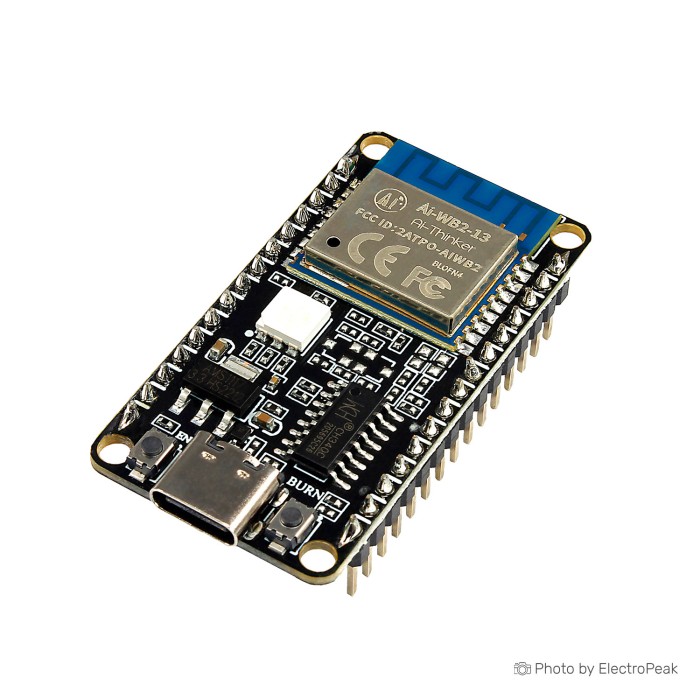

Ai-WB2-13-Kit is a development board designed for Ai-WB2-13 modules. Ai-WB2-13 is a
Wi-Fi & Bluetooth module developed by Shenzhen Ai-Thinker Technology Co., Ltd. The
module is equipped with BL602 chip as the core processor and supports Wi-Fi 802.11b/g/n
protocol and BLE 5.0 protocol. The BL602 chip has a built-in 32-bit RISC CPU with low
power consumption, 276KB RAM, and a wide range of peripheral interfaces, including SDIO,
SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO. It can be widely used in
Internet of Things (IoT), mobile devices, wearable electronic devices, smart home and other
fields.
Specification:
- DIP-30 package
- Supports IEEE 802.11 B/g/n protocol
- Wi-Fi security supports WPS/WEP/WPA/WPA2 Personal/WPA2 Enterprise/WPA3
- Supports 20MHz bandwidth with a maximum speed of 72.2 Mbps
- Bluetooth BLE 5.0, Bluetooth Mesh
- Supports Station + BLE mode, Station + SoftAP + BLE mode
- Supports 32-bit RISC CPU and 276KB RAM.
- Secure Startup. Images with ECC-256 signatures are supported.
- Supports real-time AES decryption (OTFAD) in QSPI and SPI Flash, and supports AES
- 128 CTR mode
- Supports AES 128, 192, and 256-bit encryption engines
- Supports SHA-1/224/256
- Real random number generator (TRNG)
- The public key accelerator (PKA) supports large numbers of basic operations. The
- software provides application interfaces such as signature and verification
- Supports SDIO, SPI, UART, VDC, IR remote, PWM, ADC, DAC, PIR, and GPIO
- Integrated Wi-Fi MAC/BB/RF/PA/LNA/Bluetooth
- Supports multiple sleep modes with a deep sleep current of 12μA
- Quick Start of universal AT commands
- Supports secondary development and integrates Windows and Linux development
- environments
| MCU/SoC | BL602 |
|---|---|
| Architecture | RISC-V |
| CPU Cores | 1-core RISC-V |
| Clock Speed (MHz) | 192 MHz |
| Flash | 4MB |
| SRAM | 276KB |
| External Memory | Supports real-time AES decryption (OTFAD) in QSPI and SPI Flash |
| GPIO Pins | 11 |
| SPI interface Pins | 1 |
| I2C interface Pins | 1 |
| UART interface Pins | 2 |
| USB Ports | 1 x Micro USB |
| Ethernet Support | No |
| ADC Channels | 5-channel 12-bit ADC |
| DAC Channels | 1 |
| PWM Channels | 5 |
| Operating Voltage (V) | 3.3V |
| GPIO Voltage (V) | 3.3V |
| Sleep Current (µA) | 12μA |
| Wireless | Bluetooth, Wi-Fi |
| Form Factor | DIP-30 |
| IDE Support | Linux, Windows |
| Input Voltage (V) | 5V |
| Antenna Type | Internal Antenna |
| Bluetooth Ver. | 5 |
