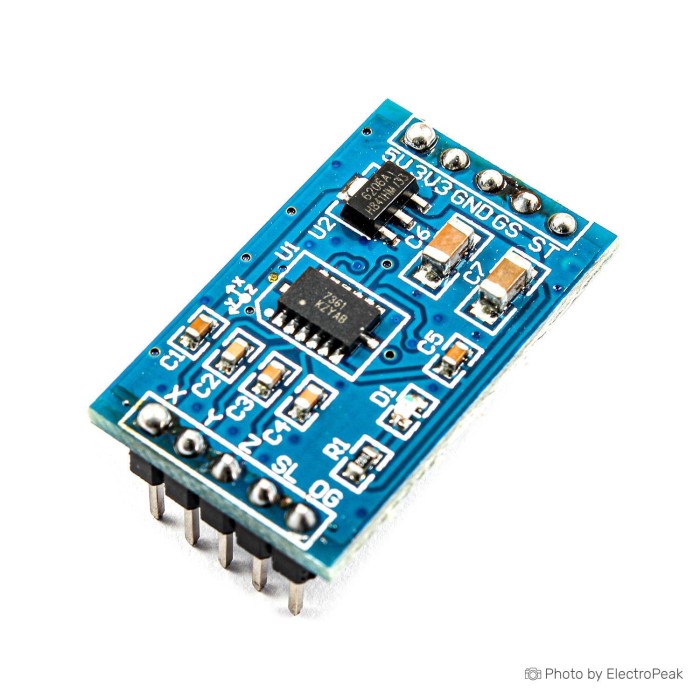

MMA7361 3-Axis Accelerometer Sensor Module
$12.5000
In stock
SKU
SEN-02-001
Volume discounts:
- +25 4 % $12.0000
- +50 6 % $11.7500
- +100 8 % $11.5000
- +300 10 % $11.2500
- +500 12 % $11.0000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The MMA7361 3-Axis Accelerometer Sensor Module is a low-power accelerometer module for measuring acceleration in selectable ranges. It includes low-pass filtering, 0g-detect, and sleep mode for reduced current consumption. Factory-set zero-g offset and sensitivity simplify integration. The module is designed with onboard signal conditioning and selectable sensitivity settings.
Features of MMA7361 3-Axis Accelerometer Sensor Module
- Selectable acceleration ranges
- Low power consumption
- Sleep mode support
- Low-pass filter included
- 0g-detect functionality
- Factory-set sensitivity
Specifications of MMA7361 3-Axis Accelerometer Sensor Module
- Acceleration range: ±1.5g
- Acceleration range: ±6g
- Pin spacing: 0.1 inch
- Current: 400 µA
- Sleep mode current: 3 µA
- Sensitivity: 800 mV/g at 1.5g
- Low voltage operation: 2.2 V - 3.6 V
- 0g-detect
- Low pass filter
- 0.5 ms enable response time
- Self test
- Temperature compensation
- Signal conditioning
- High shocks survivability
- RoHS compliant
- Environmentally preferred product
How to Use MMA7361 3-Axis Accelerometer Sensor Module
- Apply power within the supported voltage range.
- Select the desired acceleration range.
- Read the acceleration output signals.
More Info
- On-board MMA7361 accelerometer sensor
- Suitable for handheld battery powered electronics
| Interface Type | Analog |
|---|---|
| Operating Voltage (V) | 3.3V |
| Operating Current (mA) | 400 µA |
| Operating Temp (°C) | -40 to 85 |
| Output Type | Analog Voltage |
| Accuracy | 800 mV/g at 1.5g |
| Measurement Range | ±1.5g, ±6g |
| Number of Axes | 3-axis |
| Acceleration Range (g) | ±1.5g, ±6g |
| Push Button | No |
| Sensor Type | accelerometer |
| Supply Current | uA |
| Chipset | MMA7361 |
