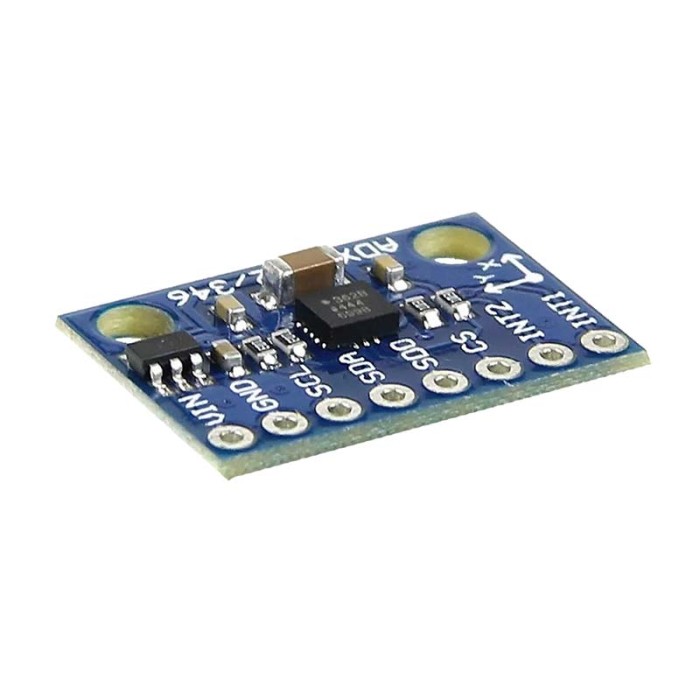

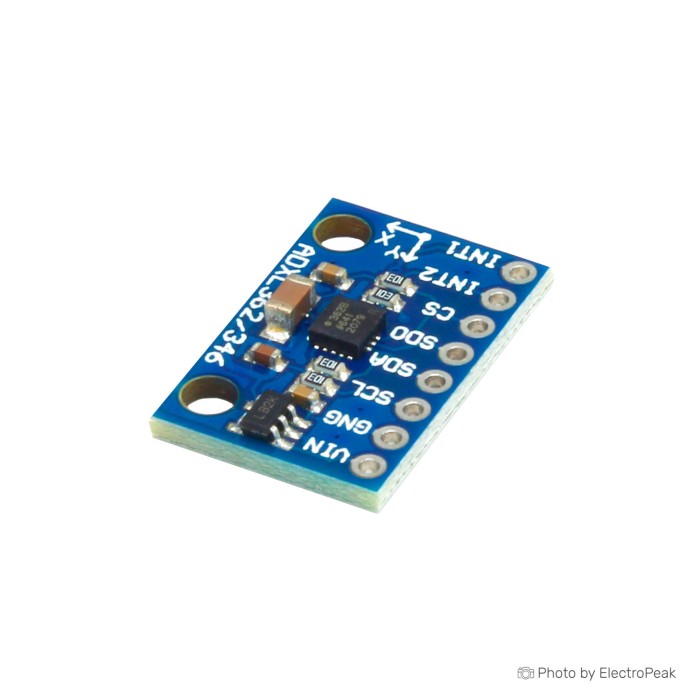

ADXL362 3-Axis Digital Accelerometer Module
$2.9500
In stock
SKU
SEN-28-002
Volume discounts:
- +25 4 % $2.8300
- +100 6 % $2.7700
- +300 8 % $2.7000
- +500 11 % $2.6400
- +1000 13 % $2.5800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The ADXL362 3-Axis Digital Accelerometer Module is a digital accelerometer module with ultra-low power consumption, high resolution, and SPI digital interface support. It includes motion-activated wake-up modes, adjustable thresholds, and autonomous interrupt processing for efficient system operation. The module also provides an on-chip temperature sensor and a deep embedded FIFO. Its selectable measurement range and wide voltage compatibility make it suitable for electronics and motion sensing designs.
Features of ADXL362 3-Axis Digital Accelerometer Module
- Ultra-low-power operation
- High-resolution output
- Motion-activated wake-up mode
- Adjustable sleep/wake thresholds
- On-chip temperature sensor
- Deep embedded FIFO
- External trigger for acceleration synchronization
- Autonomous interrupt processing
- SPI digital interface
Specifications of ADXL362 3-Axis Digital Accelerometer Module
- Power Consumption: 1.8 μA at 100 Hz ODR (2.0 V supply)
- Power Consumption: 3.0 μA at 400 Hz ODR (2.0 V supply)
- Power Consumption: 270 nA in motion-activated wake-up mode
- Power Consumption: 10 nA in standby mode
- Resolution: 1 mg/LSB
- Supply Voltage Range: 1.6 V to 3.5 V
- Vin Pin Voltage: 2 V ~ 10 V (via integrated LDO output 3.3 V)
- Operation Voltage: 1.8 V to 3.3 V
- Noise Level: Down to 175 μg/√Hz
- Interfaces: SPI digital interface
- Additional Feature: Adjustable sleep/wake thresholds
- Additional Feature: On-chip temperature sensor
- Additional Feature: Deep embedded FIFO
- Additional Feature: External trigger for acceleration synchronization
- Additional Feature: Autonomous interrupt processing
- Measurement Range: Selectable via SPI commands
- Dimensions: ---
How to Use ADXL362 3-Axis Digital Accelerometer Module
- Connect the module using the SPI digital interface.
- Apply power within the supported voltage ranges.
- Configure the measurement range and sleep or wake settings through SPI commands.
More Info
- Product type: 3-axis digital accelerometer module.
- Manufacturer: Analog.
| Interface Type | Digital, SPI |
|---|---|
| Operating Voltage (V) | 1.8 V to 3.3 V |
| Operating Current (mA) | 1.8 μA at 100 Hz ODR (2.0 V supply), 3.0 μA at 400 Hz ODR (2.0 V supply), 270 nA in motion-activated wake-up mode, 10 nA in standby mode |
| Operating Temp (°C) | -40 to 85 |
| Output Type | Digital |
| Resolution | 1 mg/LSB |
| Measurement Range | Selectable via SPI commands (±2g/±4g/±8g) |
| Number of Axes | 3-axis |
| Acceleration Range (g) | ±2g, ±4g, ±8g |
| Sampling Rate (Hz) | Up to 400Hz |
| Push Button | No |
| Sensor Type | accelerometer |
| Protocols | SPI |
| Supply Current | uA |
| Chipset | ADXL362 |
