801S Vibration Sensor Module
$2.2700
In stock
SKU
SEN-13-047
Volume discounts:
- +50 4 % $2.1700
- +100 6 % $2.1300
- +300 8 % $2.0800
- +500 11 % $2.0300
- +1000 13 % $1.9800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SW-18010P Vibration Sensor Module Previous

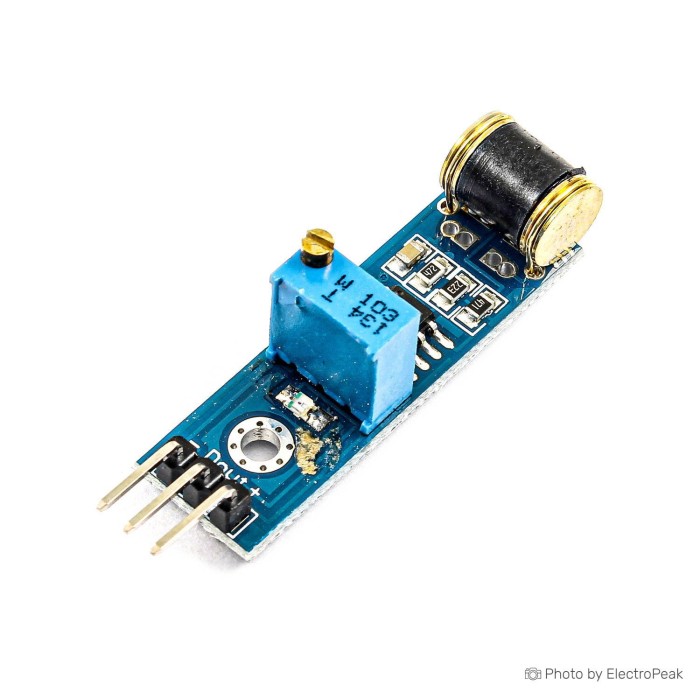

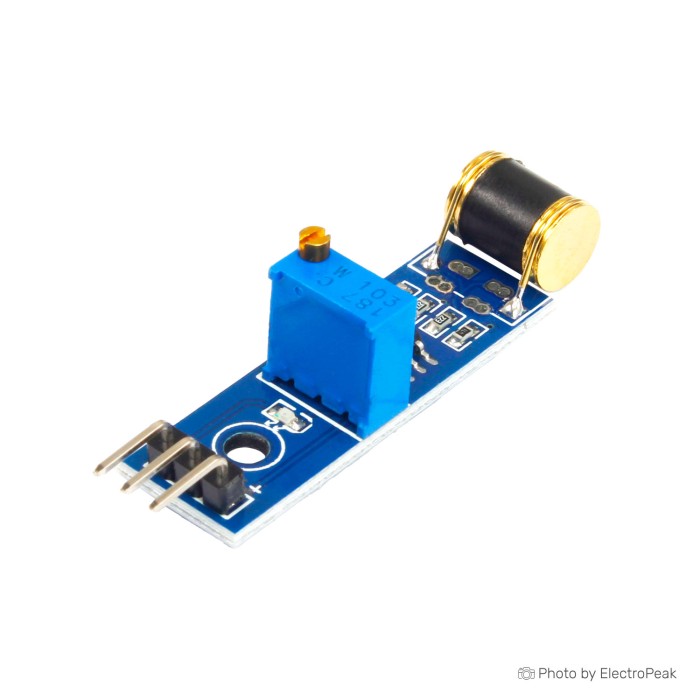

The 801S Vibration Sensor Module is designed for vibration and shock detection in electronic and mechanical systems. It provides a digital HIGH or LOW output based on vibration intensity. The module includes LM393 and 801 chips and supports sensitivity adjustment through the onboard potentiometer. It is suitable for DIY projects, security systems, and industrial applications. Its compact size and low power use make it practical for space-limited builds.
Features of 801S Vibration Sensor Module
- Digital HIGH/LOW output
- Sensitivity adjustable
- Low power consumption
- Compact modular design
- Signal output indication
- TTL level signal output
- Analog output signal
- Wide vibration detection range
- No direction sensitivity
- Mounting holes included
Specifications of 801S Vibration Sensor Module
- Working voltage: 5V DC
- Dimensions: 35x11x14 mm
- Output: Digital (HIGH/LOW)
- Main chips: LM393, 801
- Sensitivity adjustment: Yes
How to Use 801S Vibration Sensor Module
- Connect the module to a 5V DC power supply.
- Adjust the potentiometer to set the desired sensitivity.
- Read the digital output for vibration or shock detection.
More Info
- Designed for vibration and shock sensing.
- Useful for security, machinery, and laboratory projects.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 5V |
| Dimensions (mm) | 35x11x14 |
| Mounting Type | Screw holes |
| Output Type | Digital |
| Number of Axes | 1-axis |
| Sensor Type | Vibration Sensor |
