WS2812 7-Bit RGB LED Ring Module
$0.6200
In stock
SKU
ELC-02-015
Volume discounts:
- +50 5 % $0.5900
- +100 6 % $0.5800
- +300 8 % $0.5700
- +500 11 % $0.5500
- +1000 13 % $0.5400
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More

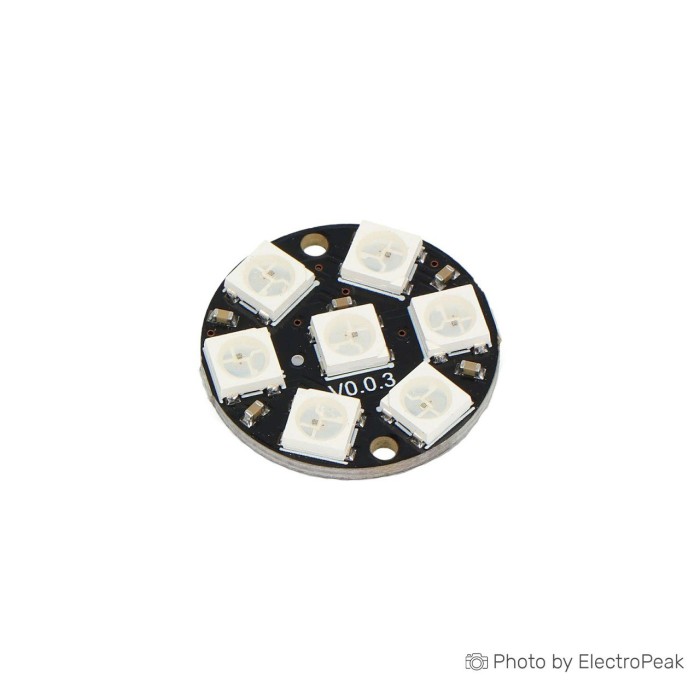

The WS2812 7-Bit RGB LED Ring Module is a circular RGB LED module for electronics and robotics projects. It uses the WS2812B LED chip and a single-wire interface for data transmission. The ring includes 7 LEDs in a circular arrangement and supports individually addressable control. Each LED can display a unique color, making the module suitable for lighting effects and visual displays. The light source model is 5050, and the working voltage is DC 4-7V.
Features of WS2812 7-Bit RGB LED Ring Module
- Individually addressable RGB LEDs
- Single-wire data protocol
- 7 LED circular arrangement
- WS2812B LED chip
- 5050 light source model
- Vivid RGB color output
Specifications of WS2812 7-Bit RGB LED Ring Module
- LED Type: RGB LEDs with WS2812 protocol
- Number of LEDs: 7 LEDs in a circular arrangement
- Control: Individually addressable LEDs
- Communication: Single-wire data protocol (WS2812)
- Light source model: 5050
- Working Voltage: 4-7V DC
- Outer diameter: 23mm
- LED chip: WS2812B
How to Use WS2812 7-Bit RGB LED Ring Module
- Connect the module to a compatible control system.
- Provide a DC 4-7V power supply.
- Send data through the single-wire interface to control the LEDs.
More Info
- Multiple LED rings can be connected in series.
- The number of pins on the LED may vary depending on import time.
| Item Type | LED Module |
|---|---|
| LED Chip | WS2812B (5050) |
| LED Count | 7 |
| LED Color | RGB |
| Compatible With | Arduino, Microcontrollers |
| Color Order | GRB |
| Protocols | Single-wire |
| Operating Voltage (V) | DC 4-7V |
| Dimensions (mm) | Outer diameter: 23mm |
