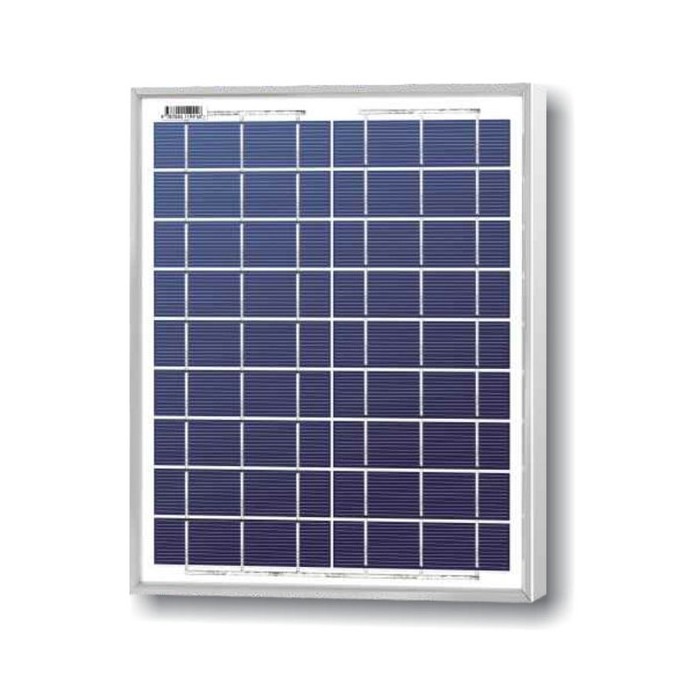

6V 6W Solar Panel with Wiring and Bracket

6V 6W Solar Panel with Bracket Review

This framed 6V, 6W solar panel bundle generates direct current (DC) power from sunlight and includes a 4.5m copper wire and mounting bracket. It suits small DC power setups where the installer can verify connector fit, polarity, controller specifications, and physical mounting requirements. Raw photovoltaic output changes with sunlight, so this unit is not intended for direct USB device power, unmanaged battery charging, or fixed production equipment requiring documented electrical curves.

For photovoltaic modules in other project voltages and form factors, see our full range of solar panels.

Specifications of 6V 6W Solar Panel with Wiring and Bracket

• Output voltage: 6V
• Power: 6W
• Wire: With 4.5m copper wire
• Bracket: Bracket included
• Lamp Body Material: Aluminum
• Shade material: ordinary tempered glass
• Light source type: solar
• Irradiation area: 30m2
• No light source for the lamp: No light source for the lamp
• Voltage: ≤36V (inclusive)
• Intelligent control: No intelligent control
• Protection class: IP67
• Dimensions: 180mm × 270mm

6V 6W Solar Panel Specifications Explained

A solar panel's nominal rating describes output under full direct illumination. Real-world performance still depends heavily on operating conditions and integration hardware.

Where pre-attached hardware and extended cabling add unnecessary bulk, a compact bare 6V solar module measuring 132 × 173 × 3 mm offers a smaller footprint for custom low-power electronics.

6V 6W Solar Panel Compatibility and Limitations

Successful integration starts with understanding what raw photovoltaic modules can and cannot connect to directly. Photovoltaic cells act as current-limited DC generators, not regulated power supplies.

Open-circuit voltage (Voc), maximum power voltage (Vmp), and short-circuit current (Isc) are not published. Measure open-circuit behavior under direct sunlight before connecting sensitive control circuitry. Where your system architecture relies on a higher standard operating rail, a 9V solar-panel input requirement is a more appropriate voltage match than stepping up a 6V source.

The specification sheet also references lighting-template parameters, including a 30m2 irradiation area and lamp body materials. These lines stem from commercial manufacturing templates and do not indicate that a lamp, battery storage, or automated illumination controller is present in the bundle.

6V 6W Solar Panel Accessories and Battery Setup

A reliable standalone power setup around this panel needs balancing, regulation, and mounting components matched to your application.

Required Components

• Compatible Load Input or Solar Charge Stage: Solar voltage rises and falls unpredictably as weather changes. A dedicated regulation stage or solar charge controller is essential for converting erratic photovoltaic current into stable system power.
• Mating Connector or Rated Termination: Because the pre-installed cable terminal type is not detailed, verify the plug on delivery or splice an appropriate polarized connector onto the copper leads.
• Surface-Appropriate Fasteners: The package includes a bracket, but screws, masonry anchors, or pole clamps suited to your mounting substrate must be sourced separately.

Recommended Components

• Battery-Backed Solar Charging Control: For systems that run overnight, route the panel into a compatible solar charge controller or a solar battery charge controller. Verify that the controller's maximum allowable PV input voltage accommodates the panel's open-circuit reading.
• Weatherproof Cable Enclosure: Outdoor splices require heat-shrink tubing with adhesive lining, silicone seals, or an IP-rated junction box to prevent moisture creep into the conductor strands.
• Digital Multimeter: Essential for checking output voltage and verifying barrel or terminal polarity before making live electrical connections.

Optional Components

• Polarized High-Current Connectors: For integration into an existing DC power harness, terminating the leads with an XT60 solar-system connector provides secure, polarized disconnection.
• Rechargeable Energy Storage: Adding battery storage for a solar system allows daytime energy collection for nighttime use. Never connect lithium cells directly to the solar leads without a charge controller and battery protection circuit.
• Adjustable Tilt Hardware: Where the supplied bracket does not achieve the optimum solar angle for your geographic latitude, supplemental mounting hardware can improve seasonal yield.
• Inline DC Fuse: An inline fuse between the panel and controller adds overcurrent protection once your circuit's operating current is established.

6V Solar Panel with Bracket Alternatives

Solar applications call for different balances of surface area, pre-fitted hardware, and working voltage. Your power budget and physical constraints may point to another model in the catalog.

• Lower-Power Bracketed Option: For modest power requirements with pre-fitted hardware, the lower-power 6V bracketed solar panel provides 3W output in a smaller 13.5mm × 220mm frame.
• Higher-Power Bracketed Options: Setups running continuous telemetry or higher-draw loads can use the higher-power 6V bracketed solar panel (12W, 290mm × 350mm) or the higher-wattage 6V solar panel with bracket (15W, 350mm × 350mm). Both include 4.5m wiring and mounting hardware.
• Compact Bare Modules: For self-contained sensor housings that do not need external brackets or long leads, choose the compact 0.6W solar panel (120mm × 38mm) or the small 1W 6V solar panel (110mm × 60mm).
• 9V Operating Voltage Systems: Small educational demonstrations designed around higher voltage levels can use the 9V solar panel for solar-energy demonstrations (1.5W, 115mm × 115mm) or the compact 9V solar panel (2W, 135mm × 125mm).

6V 6W Solar Panel Setup Check

This standalone solar panel requires no software, firmware, or digital configuration. Use these verification steps to test the hardware before permanent installation:

1. Visual and Physical Inspection: Check the tempered glass and aluminum frame for shipping damage. Measure the outer dimensions against your mounting clearance and confirm the bracket attachment points.
2. Measure Open-Circuit Voltage (Voc): Aim the panel directly at the sun in clear daylight. Set a digital multimeter to DC volts and measure across the cable terminals. A healthy panel will show a distinct positive DC reading under bright sun.
3. Identify Output Polarity: Note which conductor or connector pin corresponds to positive potential on the meter. Mark the cable clearly to prevent reversed polarity during final assembly.
4. Verify Controller Compatibility: Confirm that your charge controller or DC-DC regulator accepts the open-circuit voltage measured in step 2 without exceeding its absolute maximum ratings.
5. Wire Through the Regulation Stage: Connect the panel leads to your controller's PV input terminals. Never connect the panel directly to a raw battery or sensitive microelectronics.
6. Seal Outdoor Cable Penetrations: Where the connection to your enclosure sits outdoors, apply waterproof sealing around the joint to prevent environmental water ingress.

6V 6W Solar Panel FAQ

Is this 6V 6W solar panel a constant 6V power supply?

No. It is not a regulated power source. The 6V and 6W ratings describe nominal generation capacity under full direct sunlight. Output voltage fluctuates continuously with solar irradiance, ambient temperature, and the electrical load connected to the terminals.

Can this 6V 6W solar panel charge a battery directly?

No, do not connect the panel directly to a battery. The product does not include charge-management circuitry or reverse-current protection. A direct battery connection risks overcharging during peak sunlight or discharging back through the panel at night. Always use an appropriate compatible solar charge controller.

How much current can this 6V 6W solar panel provide?

Specific values for short-circuit current (Isc) and maximum-power current (Imp) are not published for this model. Under ideal conditions, a 6W panel rated at 6V operates in the neighborhood of roughly 1A, but measure your unit under direct sun to establish real-world figures for circuit protection.

What connector is on the included 4.5m wire?

The product documentation does not specify connector dimensions, gender, or internal pin assignments. Inspect the connector upon receipt and use a multimeter to determine polarity before mating it to other equipment or splicing on a new termination.

Is the complete cable and connector assembly waterproof?

The panel assembly carries an IP67 rating, protecting the frame, glass, and internal cell construction from dust and moisture. However, the rating does not guarantee that the pre-attached connector or subsequent cable joints are waterproof when mated. Treat all outdoor wire junctions with external weatherproof seals.

Are the panel dimensions definitely 180mm × 270mm?

The published specification lists the panel at 180mm × 270mm. Because minor manufacturing variations occur across production batches, take physical measurements from the delivered unit before cutting custom enclosures or drilling fixed bracket holes.

Does the package include a lamp, battery, or smart controller?

No, the package includes only the framed solar panel, the attached 4.5m copper wire, and the mounting bracket. References to lighting materials or automated controls in the specifications are template artifacts; no luminaire, storage cells, or smart control hardware are present.

What does "30m2 irradiation area" mean?

This is a specification field carried over from solar lighting fixtures. It does not represent the physical collection area of the panel or its electrical capacity, and it should not be used to calculate power generation.

Where an installation requires more capacity than 6W, consider a higher-power 6V bracketed solar panel for its operating demands.

Purchase Decision Summary

Buying Checklist

• My controller or load interface accepts a nominal 6V solar input.
• I understand this panel does not provide regulated 5V USB power or a constant 6V rail.
• I have a multimeter ready to verify connector pinout and polarity before connecting sensitive devices.
• I have an appropriate solar charge controller planned for any battery-backed application.
• I have accounted for variations in solar output caused by clouds, panel orientation, and seasonal sun angles.
• My installation location can accommodate the stated 180mm × 270mm footprint.
• I have suitable surface mounting screws and weatherproof sealing supplies for the cable run.
• I am not relying on the listed 30m2 irradiation area to calculate energy output.
