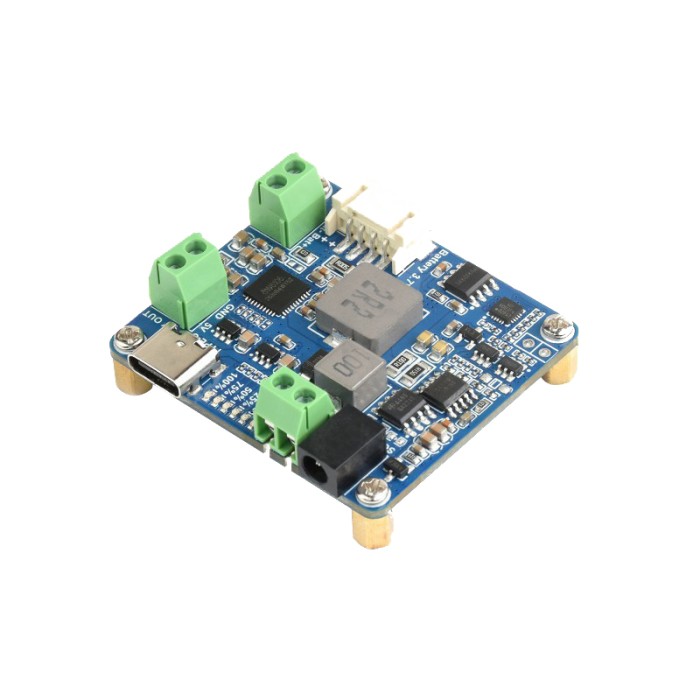

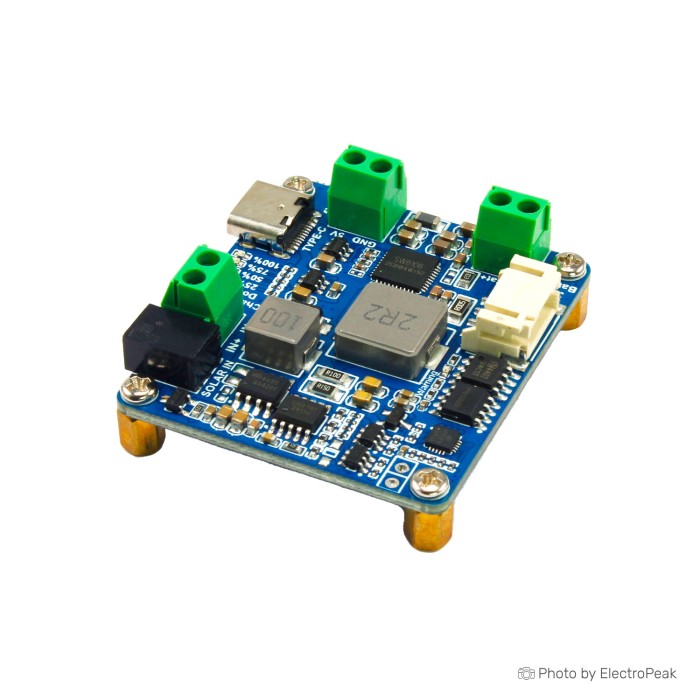

Waveshare Solar Power Manager Module (D) Type-C- 15W + Battery Holder
The Waveshare Solar Power Manager Module (D) Type-C - 15W is an advanced solar power management solution designed to efficiently handle and optimize energy from solar panels. Compatible with 6V to 24V solar panels, this module charges a 3.7V Li-ion battery and provides a stable 5V/3A output via Type-C, supporting various fast-charging protocols including PD, QC, FCP, PE, and SFCP. With features like MPPT (Maximum Power Point Tracking) and comprehensive protection circuits, it ensures high efficiency, reliability, and safety for solar-powered and environmental projects.
Specifications of Waveshare Solar Power Manager Module (D) Type-C - 15W
-
Input Voltage: 6V~24V (solar panel), 5V (Type-C power adapter)
-
Output Voltage: 5V
-
Output Current: 3A
-
Battery: 3x18650 Li-ion (not included)
-
Recharging Cutoff Voltage: 4.2V
-
Over-Discharge Protection Voltage: 3.0V
-
Solar Panel Recharging Efficiency: ~78%
-
USB Recharging Efficiency: ~93%
-
Battery Boost Output Efficiency: ~90%
-
Quiescent Current (MAX): <30mA
-
Dimensions: 45 x 40 x 10.1 mm
-
LED Indicators: Multi LED indicators for monitoring solar panel and battery status
-
Protection Circuits: Over-charge, over-discharge, overheat, over-current
-
Input Connectors: DC-002 jack, screw terminal
-
Output Connectors: Type-C, screw terminal
Features of Waveshare Solar Power Manager Module (D) Type-C - 15W
-
MPPT Function: Maximizes solar panel efficiency.
-
Versatile Charging: Supports charging from both solar panels and Type-C adapters.
-
Multi-Protection: Includes protection against over-charge, over-discharge, overheat, and over-current.
-
High Efficiency: Optimized recharging and output efficiency.
-
Compact Design: Small dimensions for easy integration.
Applications of Waveshare Solar Power Manager Module (D) Type-C - 15W
-
Solar-Powered Projects: Ideal for solar energy applications and environmental protection projects.
-
Low-Power IoT Devices: Suitable for powering IoT devices with stable and efficient energy.
-
Portable Energy Solutions: Perfect for portable solar energy setups and battery charging solutions.
-
Suitable For Solar-Powered Control System For MCUs / Development Boards Like Raspberry Pi / Jetson Nano / Arduino.
