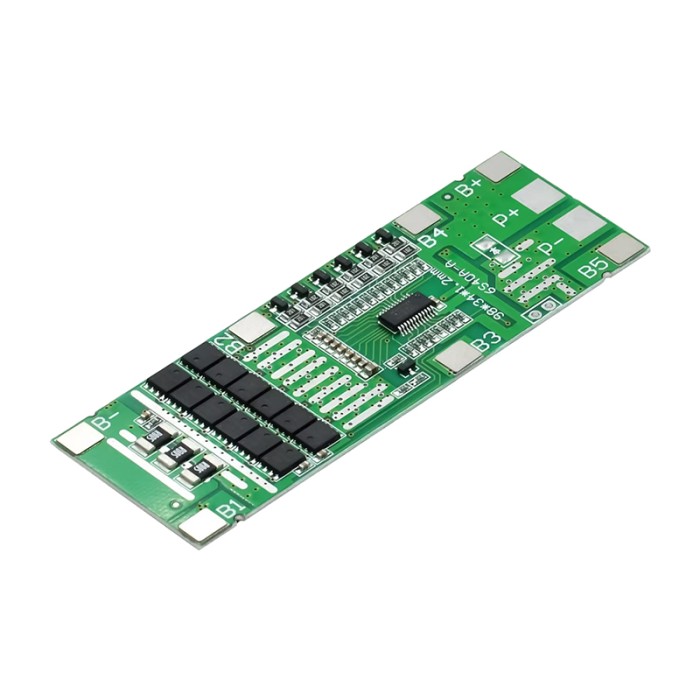

6S 22.2V BMS 18650 Lithium Battery Protection Board

[BAT-03-090]
Shop with confidence Learn More
Availability: In stock
SKU
BAT-03-090
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
As low as $1.95

The 6S 22.2V BMS 18650 Lithium Battery Protection Board is designed to safeguard 6-cell lithium battery packs with protection features like overcharge, over-discharge, overcurrent, and short-circuit protection. It supports a discharge current of up to 40A, and includes a heatsink for effective cooling. The board balances the battery cells during charging, ensuring consistent performance and longevity. It is ideal for 6S battery systems, providing reliable power management for various applications.

Specifications of 6S 22.2V BMS 18650 Lithium Battery Protection Board

  • Maximum Discharge Current: 40A (Instantaneous: 70A)

  • Charging Voltage: 25.5V

  • Maximum Charge Current: 40A

  • Overcharge Detection Voltage: 4.25 ± 0.025V

  • Overdischarge Detection Voltage: 2.7 ± 0.1V

  • Overcurrent Protection Current: 75 ± 5A

  • Operating Temperature: -30°C to +80°C

  • Protection Features: Overcharge, over-discharge, overcurrent, and short-circuit protection

  • Dimensions: 88x34x2.8mm

Datasheet of 6S 22.2V BMS 18650 Lithium Battery Protection Board

Datasheet: Not available.
