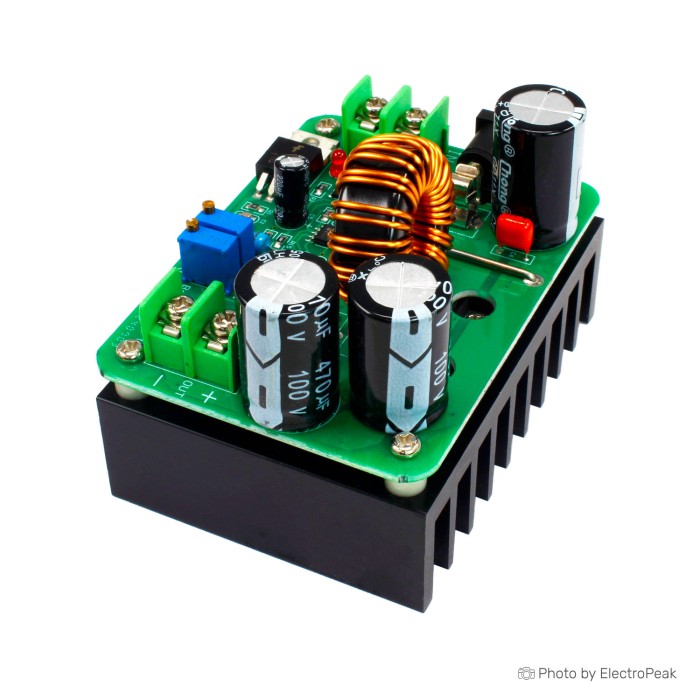

The 10A 600W DC-DC Adjustable Boost Converter is a power electronics device designed to efficiently step up or boost a lower input voltage to a higher output voltage. This specific converter is capable of handling up to 10 amperes of current and can provide a maximum power output of 600 watts. The adjustable feature allows users to set the desired output voltage within a specified range, making it versatile for various applications.

Key features of the 10A 600W DC-DC Adjustable Boost Converter module may include:

  • Output Voltage and Current Adjustment: The adjustable nature of the converter enables users to set the desired output voltage and current according to the requirements of their specific application.
  • Efficiency: DC-DC converters are designed to operate with high efficiency, converting input power to output power with minimal losses. The efficiency of this module is up to 95%, which depends on the input and output voltage and current.
  • Protection Features: This module is protected against over-current and short-circuit on output.
  • Applications: Boost converters are commonly used in various electronic and electrical systems, such as powering LED lighting, charging batteries, and driving motors in applications like electric vehicles. This module can output 14-80 volts on output. It just needs a 12 volt adapter for inout.
  • Cooling: This module is equipped with a customized radiator, the dimensions of which are floor thickness 5mm, tooth height 21mm, length 85mm, width 63mm, and it has the ability to dissipate the heat generated by the circuit. It is mounted above the booster ICs.
  • 9600 AT: 38400 HC05

Specifications of the 10A 600W DC-DC Adjustable Boost Converter module:

  • Input voltage: 12V-60V
  • Input Current: The maximum input current 15A
  • Output voltage: 12V-80V continuously adjustable
  • Output Current: Maximum output current 10A (adjustable)
  • Output power: active power P = input voltage V * 10A
  • Conversion efficiency: up to 95% (input voltage, current; output voltage and current affect the conversion efficiency)
  • Short circuit protection: Fuse
  • Weight : 270g
  • Dimensions: 73x51 mm

Use Cases of 10A 600W DC-DC Adjustable Boost Converter module:

The 10A 600W DC-DC Adjustable Boost Converter modules find application in various scenarios where the conversion of a lower input voltage to a higher output voltage is required. Here are several use cases for these modules:

  • Battery Charging Systems: Utilized in charging systems for batteries, especially in situations where the input voltage from solar panels or other sources is lower than the required charging voltage.
  • LED Lighting Systems: Applied to power high-power LED arrays or strips that require a higher voltage than the input supply.
  • Electric Vehicles (EVs) and E-Bikes: Integrated into electric vehicle and e-bike power systems to boost voltage from batteries to drive motors or other high-voltage components.
  • Powering Motors and Actuators: Employed to power motors and actuators in robotics and automation systems where a higher voltage is needed for efficient operation.
  • DIY Power Supplies: Incorporated into DIY bench power supplies, allowing hobbyists and electronics enthusiasts to create adjustable power sources for various projects.
  • Emergency Power Systems: Used in emergency backup power systems to step up voltage from backup batteries to support critical equipment during power outages.
  • Audio Amplifiers: Employed in audio amplifier circuits to boost the voltage supplied to power amplification stages for audio systems.

 Usage tips of 10A 600W DC-DC Adjustable Boost Converter modules:

  • Input Voltage Limits: Ensure that the input voltage supplied to the converter falls within the specified range mentioned in the datasheet. Exceeding the input voltage limits can damage the converter. You can find the right one for your work among different types of power supply on this page.
  • Cooling Considerations: Pay attention to the cooling requirements of the converter. Adequate cooling is essential to prevent overheating. Ensure heatsink is in good contact with the device and consider additional cooling if necessary. If you need any fan to control temperature of module actively, you can get one of the fans on this page.
  • Protection Features: Familiarize yourself with any built-in protection features, such as over-current protection and over-voltage protection. These features are designed to safeguard the converter and connected devices. Ensure that these protections are not being triggered unintentionally.
  • Connectivity: Ensure proper and secure connections for both input and output terminals. Be careful not to reverse the polarity of the input voltage. This may burn your module.
  • Load Compatibility: Check the compatibility of the converter with your load. Different applications may have specific requirements, and it's important to ensure that the converter meets the needs of your particular setup.
  • Monitoring and Testing: Monitor the performance of the converter during operation. Use a Voltmeter like this one to measure input and output voltages, current, and overall system efficiency. Conduct tests in a controlled environment before integrating the converter into your final application.
