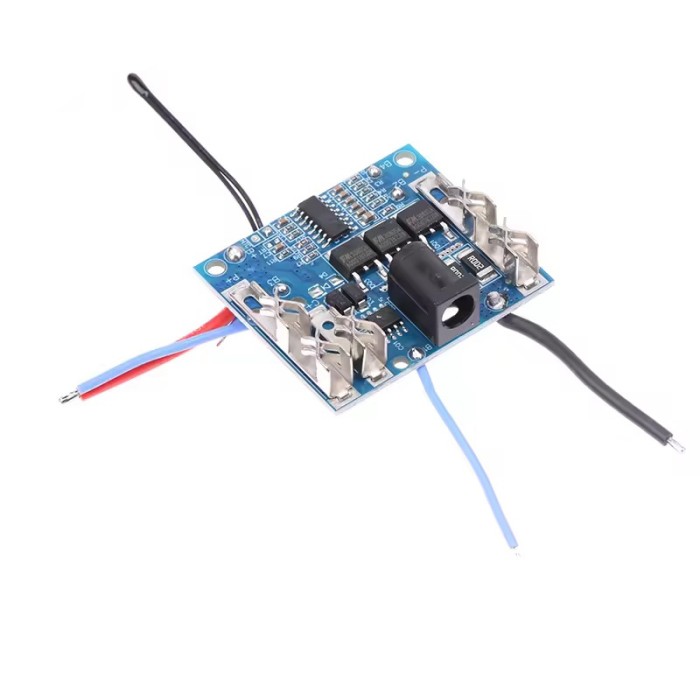

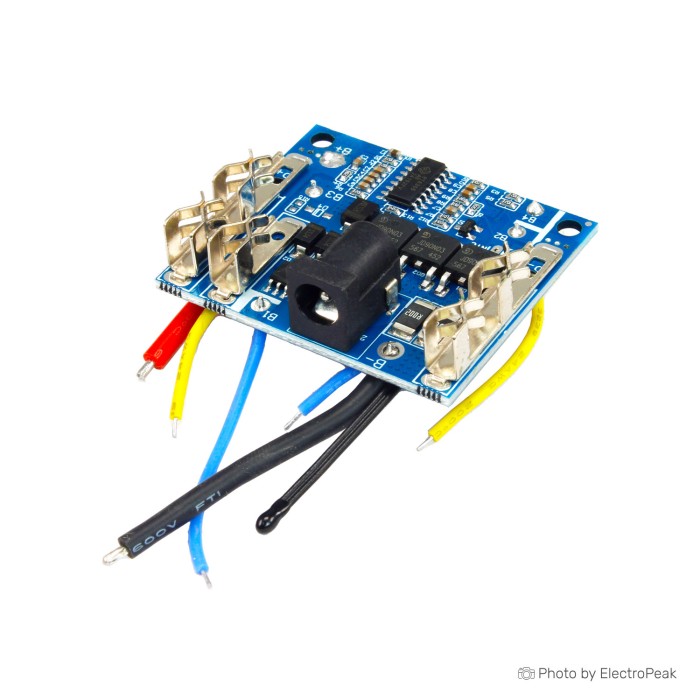

5S 18.5V 20A BMS 18650 Lithium Battery Protection Board Suitable for Drill Tools

5S 18.5V 20A BMS Review and Specifications

This 5S protection board is for rebuilding 18.5V nominal, 21V full-charge 18650 battery packs used in power tools and portable equipment. With a specified operating current range of 8–20A, it suits intermediate battery builders repairing standard cordless drills, screwdrivers, and small utility devices. Higher-torque equipment, leaf blowers, and applications with intense motor inrush currents need a board with greater current margin.

The unit uses dedicated IC monitoring for overcharge, over-discharge, over-current, short circuits, and pack temperature within the broader family of BMS modules. Before assembling a replacement pack, confirm the full factory specifications below for voltage, trip points, and sizing requirements.

Specifications of 5S 18.5V 20A BMS 18650 Lithium Battery Protection Board

• Operation Voltage: 18.5V
• Operation Current: 8-20A
• Dimensions: 46 x 40 mm
• Charge Voltage: 21V
• Single Cell Charge Voltage: 4.25V
• Overcharge Single Cell Detection Voltage: 4.25V
• Overcharge Protection Delay: 1S
• Overcharge Single Cell Recovery Voltage: 4.13V
• Overcharge Protection Release Delay: 1mS
• Over-discharge Single Cell Detection Voltage: 2.8V
• Over-discharge Protection Delay: 1S
• Over-discharge Single Cell Recovery Voltage: 3.0V
• Over-discharge Protection Release Delay: 100±20mS
• Over-current Detection Voltage: 0.4V
• Over-current Detection Current: 30±5A
• Over-current Detection Delay: 1S
• Over-current Recovery State: Auto
• Short Circuit Protection: Yes
• Short Circuit Detection Delay: 250uS
• Short Circuit Release Delay: 1S
• Short Circuit Detection Voltage: 0.8V
• Short Circuit Recovery State: Auto after Disconnect Load
• Over Temperature Protection Temperature: 70±5°C
• Over Temperature Recovery Temperature: 55±5°C
• Power Consumption Working State: 25uA (25°C)
• Power Consumption Stand-by State: 6uA (25°C)
• Internal Resistance: 30±5mΩ
• Operating Temperature: -40°C to 85°C, RH≤75%
• Store Temperature: -40°C to 125°C, RH≤75%

5S 18.5V 20A BMS Specifications Explained

The listed parameters affect physical pack construction and help prevent mismatched parts, unexpected shutdowns, and thermal stress in compact battery shells.

5S 18.5V 20A BMS Compatibility and First-Power Check

This protection board is built for 5S lithium-ion chemistries using standard 3.6V/3.7V nominal cells, such as cylindrical 18650 or 21700 cells. Its detection and cut-off points are tuned to 4.25V charge thresholds, so it is incompatible with LiFePO4 cells, which cap at 3.65V, and lead-acid setups. For a 4-cell series arrangement, choose the 4S 16.8V 40A BMS. A 6-cell series configuration requires the 6S 22.2V 40A BMS with Heatsink, which provides the required series monitoring and thermal capacity.

Pack assembly demands close attention to board markings. Wiring layouts can differ across production runs, so trace and follow the silk-screened terminal labels on the physical PCB, such as B-, B1, B2, B3, B4, and B+. For high-draw paths, solid interconnects such as an XT60 connector provide reliable transfer without excessive joint resistance.

Use this check sequence to verify operation after assembly without risking hardware damage:

1. Check individual cell voltages: Verify that all five cell groups are healthy, closely matched in voltage, and sitting between 3.6V and 4.0V before connecting the board.
2. Wire cell taps sequentially: Solder or spot-weld balance lines in the proper order designated by the silkscreen, starting from overall pack negative (B-) upward through each positive junction to pack positive (B+).
3. Check output terminal voltage: Measure across the output terminals with a multimeter. If the meter reads zero volts, the BMS is likely resting in its default protection state.
4. Apply a charger wake-up: Connect a verified 21V CC/CV Li-ion charger across the charge terminals for a few seconds to wake the protection IC.
5. Test with a bench load: Connect a light resistive load, such as an automotive bulb or bench resistor, to confirm sustained output before connecting the battery to a motor-driven tool.

5S 18.5V 20A BMS Limitations for Drill Tools

Although designed for power-tool applications, an 8–20A operating rating does not guarantee that every cordless drill or high-draw tool will run without interruption. Electric motors draw a startup surge, often several times their normal running amperage, when you pull the trigger rapidly or drive heavy fasteners. If this inrush exceeds the 30±5A over-current threshold for more than one second, the board's over-current detection trips and the tool cuts out abruptly.

Thermal accumulation is another critical factor in cordless tools. Running this board continuously near its 20A limit inside a sealed, unvented plastic battery shell creates heat. Under sustained loads, resistance across PCB traces and internal MOSFETs raises pack temperatures and can reach the 70°C thermal protection cutoff. Robust cell interconnects such as high-current nickel strip minimize pack resistance, but the board itself lacks an integrated heatsink.

This module provides circuit protection only and does not include cell-balancing circuitry. It does not redistribute energy between mismatched series groups. If your pack design requires automatic voltage equalization between cells over time, add a dedicated 3~8 Cell Active Balancer Module alongside the protection board.

5S 18.5V 20A BMS Accessories for 18650 Pack Builds

Building or recelling a safe 18.5V pack requires matched components alongside the bare protection board. The table below covers required build hardware and optional modules.

5S 18.5V 20A BMS Alternatives for Different Battery Packs

Battery management systems are hardwired to specific series cell counts. A 5S BMS cannot be used on a 4S or 6S pack: the internal monitoring IC expects five discrete cell taps to register within valid voltage thresholds, or it latches into a fault state. Match the BMS series specification to your battery design.

Smaller 14.4V nominal tools need the 4S 16.8V 40A BMS, which provides four-series protection with a higher continuous working rating. For a higher-voltage 22.2V nominal tool battery or electric scooter pack, the 6S 22.2V 40A BMS with Heatsink includes integrated cooling plates to manage heavy-draw thermal loads. Where cell drift affects any multi-cell setup, a 3~8 Cell Active Balancer Module provides active energy transfer between mismatched cells, which a standalone protection board does not provide.

5S 18.5V 20A BMS FAQ and Buying Checklist

Will this 5S 18.5V 20A BMS work with my 18V cordless drill?

Yes, provided your drill uses a 5-cell lithium-ion pack and its operating current stays within 8–20A. Most commercial tools labeled "18V" or "20V Max" use a 5S lithium-ion architecture with 18.5V nominal and 21V fully charged. Heavy-duty rotary hammers and high-torque impact wrenches may exceed the 30A over-current trip threshold during aggressive use.

Is 21V different from an 18.5V 5S drill battery?

No. They refer to the same battery system at different stages of charge. Five lithium-ion cells in series produce an 18.5V nominal pack voltage at 3.7V per cell and reach 21V when charged to their full 4.2V per cell capacity.

Why does a 5S 20A BMS cut out when my drill starts?

Motor startup inrush current is triggering the over-current protection circuit. DC tool motors draw a large instantaneous current spike when switched on rapidly. If that spike crosses the 30±5A detection point for more than 1 second, or weak cells sag below the 2.8V low-voltage limit under load, the BMS instantly shuts off power.

My new battery pack has no output. Is the BMS defective?

Most likely, the BMS is locked in an uninitialized protection state. Protection boards frequently require an activation pulse after initial assembly. Connect a 21V charger across the charge terminals for a few seconds to reset the monitoring IC, then measure the output voltage again.

Does this 5S BMS balance 18650 cells?

No, this board functions strictly as a safety protection circuit and does not include cell balancing. To maintain balance across cell groups over multiple discharge cycles, install an add-on balancer or charge the cells using an external balance charger.

Can I use this board with LiFePO4 cells?

No, this board is calibrated exclusively for standard lithium-ion chemistries. Its 4.25V overcharge and 2.8V over-discharge trip thresholds will overcharge and permanently damage LiFePO4 cells, which require a 3.65V charge limit.

What comes with the BMS board?

The package contains only the bare 46 x 40 mm protection PCB. Wiring, connectors, nickel strips, external sensors, cells, and enclosures must be sourced separately.

Purchase Decision Summary

• Suitable for: Intermediate DIY builders rebuilding 18.5V / 21V cordless drill packs, compact power screwdrivers, or moderate-drain yard tools drawing under 20A continuous.
• Consider for: Custom 5S portable battery boxes, outdoor lighting rigs, or bench power supplies where current draw is steady and well-controlled.
• Avoid if: You are powering high-torque impact drivers, large blowers, or e-bikes with high motor startup spikes; if your pack uses LiFePO4 chemistry; or if you require integrated, autonomous cell balancing.

Buying Checklist

• [ ] My battery is configured as 5S Li-ion (18.5V nominal / 21V max), not 4S, 6S, or LiFePO4.
• [ ] I have a dedicated 21V CC/CV lithium-ion charger available.
• [ ] My tool's continuous draw falls within 8–20A and startup inrush does not exceed 30A.
• [ ] The 46 x 40 mm board dimensions fit my battery housing with room for wiring.
• [ ] I have high-drain 18650 cells capable of supporting power-tool discharge rates.
• [ ] I have nickel strip, high-current connectors, insulation tape, and a multimeter for assembly.
• [ ] I understand that this board does not perform cell balancing and that waking a new build may require applying charger voltage.
