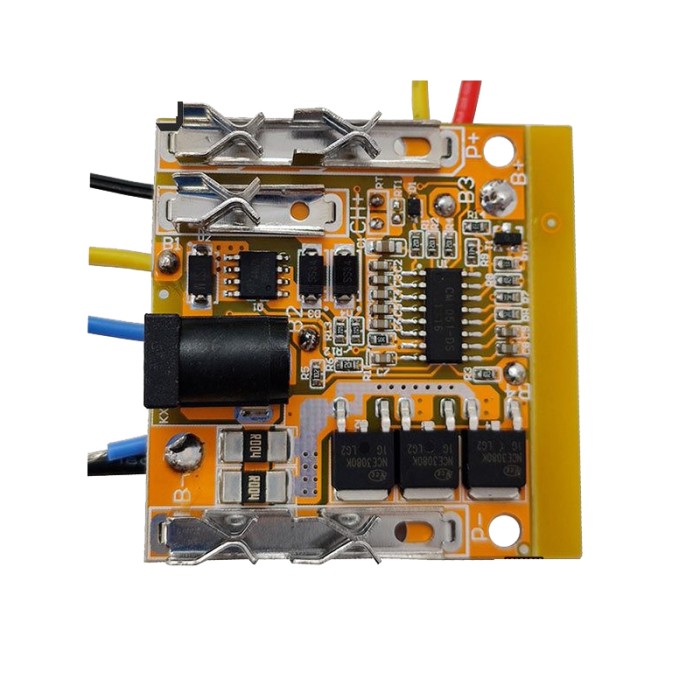

5S 18.5V 18A BMS 18650 Lithium Battery Protection Board Suitable for Drill Tools
$2.5000
In stock
SKU
BAT-03-084
Volume discounts:
- +50 4 % $2.4000
- +100 6 % $2.3400
- +300 8 % $2.2900
- +500 10 % $2.2400
- +1000 12 % $2.1900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
4S Lithium Battery Charging Protection Board -14V 30A4S Lithium Battery Charging Protection Board -14V 30A Previous
The 5S 18.5V 18A BMS 18650 Lithium Battery Protection Board is designed to ensure the safety and efficiency of your 18650 lithium batteries, making it ideal for use with drill tools. This board supports up to 5 battery cells in series and offers robust protection features including overcharge, over-voltage, and short circuit protection. With an upper operating current of 18A and an upper transient current of 50A, this BMS ensures your batteries operate within safe limits. The compact design (46 x 40 x 14 mm) allows for easy integration into various devices.
Specifications of 5S 18.5V 18A BMS 18650 Lithium Battery Protection Board
- Model: KXYC-5S CMMT4540V5S
- Operation Voltage: 18.5V
- Operation Current:
- Upper Operating Current: 18A
- Upper Transient Current: 50A
- Dimensions: 46 x 40 x 14 mm
- Overcharge Range: 4.25V ± 0.05V
- Over Voltage Range: 2.7V ± 0.05V
- Static Current: Less than 30uA
- Charging Voltage: 21V
- Short Circuit Protection: Protected, delayed self-recovery
| Cell Count | 5 |
|---|---|
| Nominal Voltage (V) | 18.5V |
| Max Current (A) | 18A |
| Protection | Overcharge,Over-voltage,Short Circuit Protection |
| Board Dimensions (mm) | 46 x 40 x 14 |
| Application | Cordless drills and power tools,18650 Lithium-ion batteries,High-current portable devices,DIY projects and electronic circuit design |
| Charging Voltage (Pack) | 21V |
