5inch TFT LCD - 800x480, 40 Pin, Capacitive Touch Screen
$23.9500
In stock
SKU
LCD-01-261
Volume discounts:
- +25 4 % $23.0500
- +50 6 % $22.6000
- +100 8 % $22.1500
- +300 9 % $21.6900
- +500 11 % $21.2400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
7inch TFT LCD - 1024x600, 50 Pin, Capacitive Touch Screen Previous

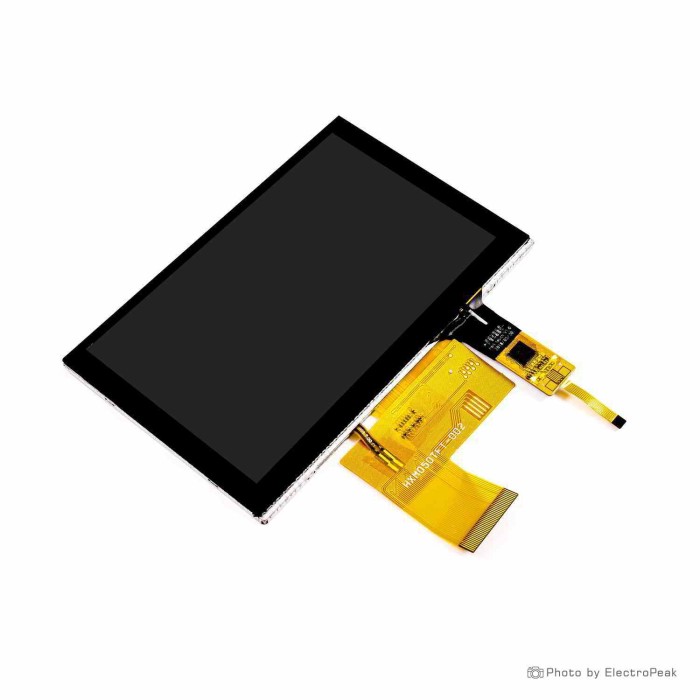

The 5-inch TFT LCD with 800x480 resolution is a high-quality full-color display ideal for electronic, industrial, and graphical projects. It features an IPS panel and capacitive touch interface for accurate and responsive touch functionality.
With a physical size of 120.7 x 75.9 mm and an active display area of 108 x 64.8 mm, this module includes a 40-pin flat cable and uses an RGB interface. The touch controller operates via a 6-pin I2C interface. It operates reliably in temperatures ranging from -20°C to +70°C, making it suitable for various environments.
Specifications of 5 inch 800x480 TFT LCD 40 Pin with Capacitive Touch
- Type: TFT & IPS LCD
- Size: 5 inches
- Resolution: 800 x 480 pixels
- Display Color: Full-Color
- Interface Type: RGB interface
- Touch Pin: 6-pin / I2C interface
- Number of Pins: 40 pin
- Working Voltage: 3.0 ~ 3.6 V
- Physical Size: 120.7 x 75.9 x 3.05 mm
- Display Area: 108 x 64.8 mm
- Cable Length: 48.95 mm
- Working Temperature: -20 to +70 °C
| Display Size | 5 |
|---|---|
| Display Size Range | 3.5 inch to 6.9 inch |
| Display Resolution | 800 x 480 |
| Display Interface | Parallel, I2C |
| Panle Type | TFT |
| Display Color Type | Full Color |
| Touchscreen Type | Capacitive |
| Operating Temp (°C) | -20 to 70 |
| Operating Voltage (V) | 3.3V |
| Pins | 40 |
| Dimensions (mm) | 120.7 X 75.9 X 3.05 (mm); 108 X 64.8 (mm) |
