4inch TFT LCD - Parallel, 39 Pin, ILI9486 Driver, Capacitive Touch Screen
$15.9500
In stock
SKU
LCD-01-187
Volume discounts:
- +25 4 % $15.3300
- +50 6 % $15.0100
- +100 8 % $14.7000
- +300 10 % $14.3900
- +500 12 % $14.0800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
5inch TFT LCD - 800x480, 40 Pin, Capacitive Touch Screen Previous

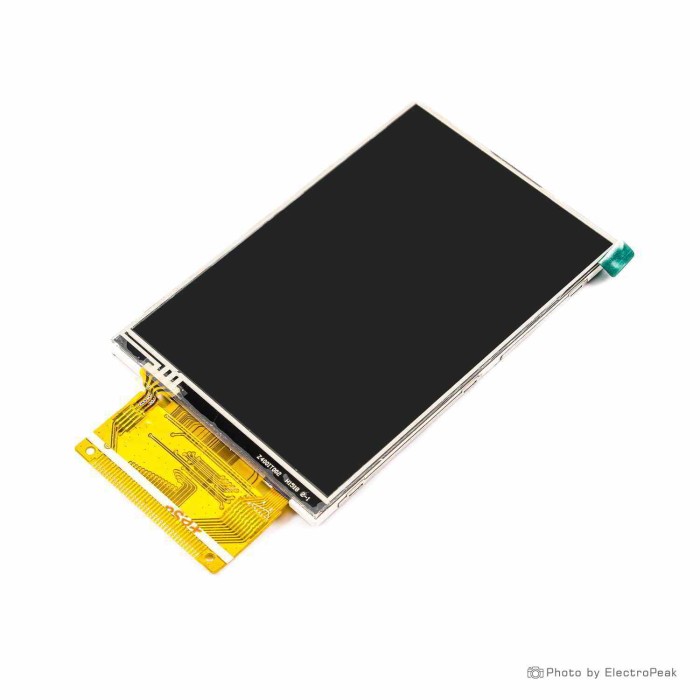

The 4-inch full-color TFT touch display with ILI948X driver (including ILI9488, ILI9486, or ILI9486L) is a great solution for projects requiring a high-resolution display and resistive touch input. It uses a 39-pin flat cable with a default 16-bit parallel interface, which can be switched to 8-bit via resistor modification. This IPS LCD offers bright, wide-angle visuals and can be easily integrated using libraries like ILI9486_SPI.
Specifications of 4 inch Full Color TFT Touch Display with Parallel Interface and ILI948X Driver, 39-Pin Flat Cable
- Type: TFT & IPS LCD with resistive touch
- Screen Size: 4 inches
- Resolution: 320 × 480 pixels RGB
- Driver Chip: ILI9488, ILI9486, ILI9486L
- Display Color: Full-color
- Display Area: 55.68 × 83.52 mm
- Physical Dimensions: 60.88 × 94.57 × 3.90 mm
- Interface Type: 8/16-bit Parallel (default: 16-bit, switchable)
- Number of Pins: 39 pins
- Pin Pitch: 0.8 mm
- Input Voltage: 2.8 to 3.3 V
- Operating Current: 120 mA
- Power Consumption: 0.43 W
- Backlight Type: 6 LEDs
- Operating Temperature: -20°C to +70°C
| Display Size | 4 inches |
|---|---|
| Display Size Range | 3.5 inch to 6.9 inch |
| Display Resolution | 320x480 |
| Display Driver | ILI9488, ILI9486, ILI9486L |
| Display Interface | Parallel |
| Panle Type | IPS |
| Display Color Type | Full Color |
| Touchscreen Type | Resistive |
| Backlight Type | White LED |
| Operating Temp (°C) | -20 to +70°C |
| Operating Voltage (V) | 3.3V |
| Pins | 39 |
| Dimensions (mm) | 60.88(W) x 94.57(H) x 3.90(T) mm |
| Pitch (mm) | 0.8 mm |
