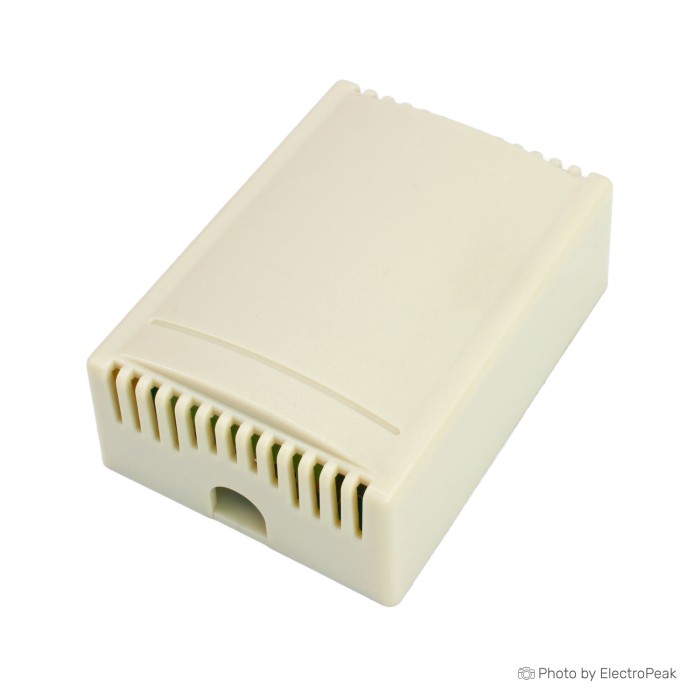

The 4 Channel Relay 315MHz Remote Control Module is a robust and versatile device designed for remotely controlling up to four electrical appliances. Operating at a frequency of 315MHz, this module allows for reliable wireless control over a considerable distance. It is ideal for home automation, security systems, and various DIY projects. With easy integration and multiple relay channels, it provides a convenient solution for remote switching applications.
Specifications of 4 Channel Relay 315MHz Remote Control Module:
- Operating Voltage: 12V DC
- Remote Control: Included, operates at 315MHz frequency
- Relay Channels: 4 independent relays
- Control Distance: Up to 50 meters (open space)
- Relay Load: Up to 10A at 250V AC or 10A at 30V DC per channel
- Operating Frequency: 315MHz
- Dimensions:
- Applications: Ideal for home automation, remote appliance control, security systems, and DIY electronics projects
How to use 4 Channel Relay 315MHz Remote Control Module:
Toggle/Self-Lock: Press->On; Press again->Off
press one button for one time is working/ON .press the same button again is stop/OFF .(1 channel switch(receiver) need 1 button remote control (transmitter).
2)Latched/Inter-Lock: Press->On; Press other button->Off
press one button is working/ON ,press another button is stop/OFF . ( 1 channel switch( receiver) need 2 buttons remote control (transmitter).
3)Momentary/Jog: Press and hold->On; Release->Off
Keep pressing one button is working /ON. loosen your finger is stop/OFF .1 channel switch(receiver) need 1 button remote control (transmitter )
