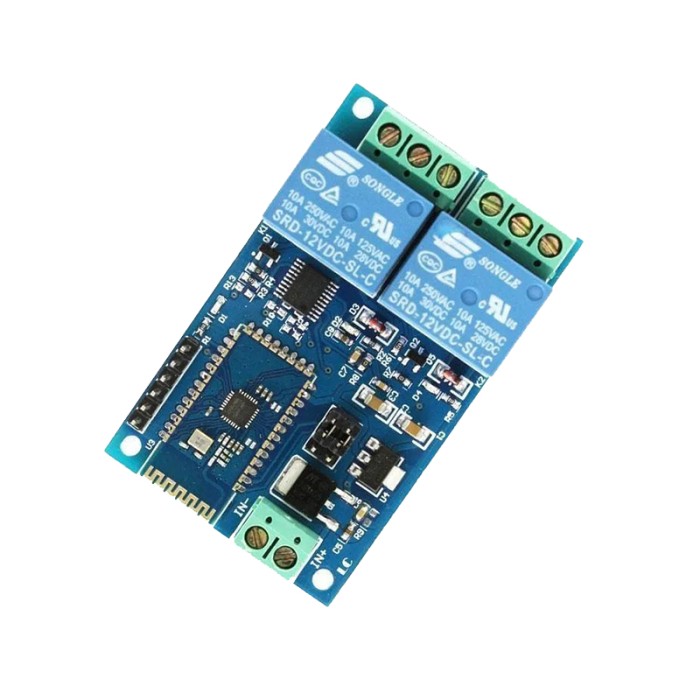

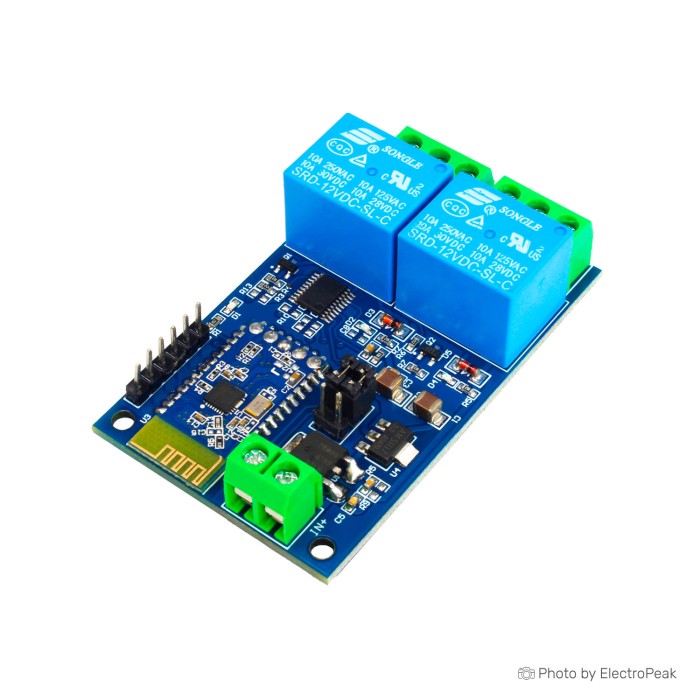

The Bluetooth Relay Module 2 Way is a versatile and convenient module that allows wireless control of two independent relays via Bluetooth. This module is perfect for a wide range of applications including home automation, remote control systems, and DIY projects. With easy integration and reliable performance, it enables users to control electrical devices remotely using a smartphone or other Bluetooth-enabled devices.
Specifications of Bluetooth Relay Module 2 Way:
-
Operating Voltage: 12V DC
-
Average Current: <100mA
-
Relay Channels: 2 independent relays
-
Output Signals:
-
SPP - C Bluetooth serial (for wireless control)
-
-
Communication Protocol: Bluetooth 2.1
-
Relay Output: Normally open (NO) and normally closed (NC) contacts
-
Control Distance: Up to 10 meters (depending on the environment)
-
Dimensions: 40x64.5mm
-
Applications: Ideal for home automation, remote control systems, DIY projects, and other applications requiring wireless relay control.
How to use of Bluetooth Relay Module 2 Way:
Command Mode:
-
Turn on first relay ：A0 01 01 A2
-
Turn off first relay ：A0 01 00 A1
-
Turn on second relay ：A0 02 01 A3
-
Turn off second relay ：A0 02 00 A2
