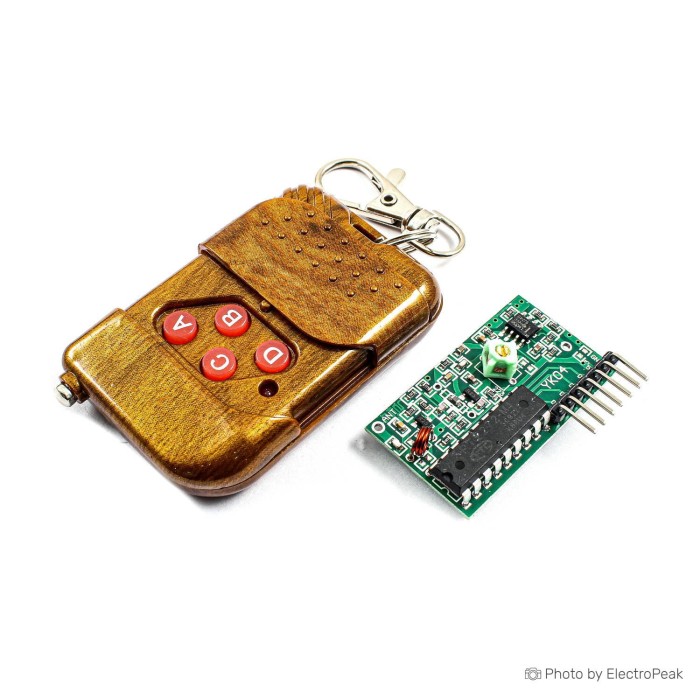

4-Channel 315MHz Remote Control & Receiver Module - Brown

The 4-Channel 315MHz Fixed Code Remote Control & Receiver Module - Brown is a wireless RF remote control set for receiver-based control applications. It uses a 315MHz operating frequency and fixed code encoding. The receiver operates at DC 5V and provides four output channels. The remote uses four buttons, matched to the receiver outputs D0, D1, D2, and D3. The output works in Jog mode, so the output stays HIGH while the button is pressed and returns to LOW when released.

This module set includes a transmitter and receiver board for wireless signal transmission and reception. The receiver board uses ASK modulation and has a valid signal output pin labeled VT. The receiver size is 41x23x7mm. The receiver sensitivity is -98dB. The listed transmission distance is 50m - 100m in an open field. A line-of-sight range of up to 4 meters without an external antenna is also noted. The remote can work with 315 MHz fixed code receivers, and coding requires opening the remote and soldering the coding bases.

Features of 4-Channel 315MHz Fixed Code Remote Control & Receiver Module - Brown

• 4-channel wireless control
• 315MHz operating frequency
• Fixed code encoding
• Jog mode output
• DC 5V receiver operation
• ASK modulation
• VT valid signal output
• Four-button transmitter

Specifications of 4-Channel 315MHz Fixed Code Remote Control & Receiver Module - Brown

• Operating frequency: 315MHz
• Encoding type: Fixed code
• Number of channels: 4
• Operating voltage: DC 5V
• Receiver size: 41x23x7mm
• Transmission distance: 50m - 100m (open field)
• Modulation mode: ASK (Amplitude Modulation)
• Receiver sensitivity: -98dB
• Pins: VT, D3, D2, D1, D0, +5V, GND
• VT signal state: High output upon receiving a valid signal
• Output mode: Jog
• Open-field range without external antenna: up to 4 meters

How to Use 4-Channel 315MHz Fixed Code Remote Control & Receiver Module - Brown

1. Open the remote control and solder the coding bases.
2. Adjust the receiver board screw slightly with a small screwdriver.
3. Press a remote button and check the corresponding output pin.
4. Repeat the adjustment until the remote and receiver are connected.

More Info

• The remote has four buttons matched to receiver outputs D0, D1, D2, and D3.
• The VT pin may also drive the relay.
• Use the output with a microcontroller or relay module as needed.
