1 Channel 315MHz Remote Control - Brown
$4.2500
In stock
SKU
COM-06-024
Volume discounts:
- +25 4 % $4.0800
- +100 6 % $4.0000
- +300 8 % $3.9200
- +500 10 % $3.8300
- +1000 12 % $3.7500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
17 Key Infrared Remote Control Previous

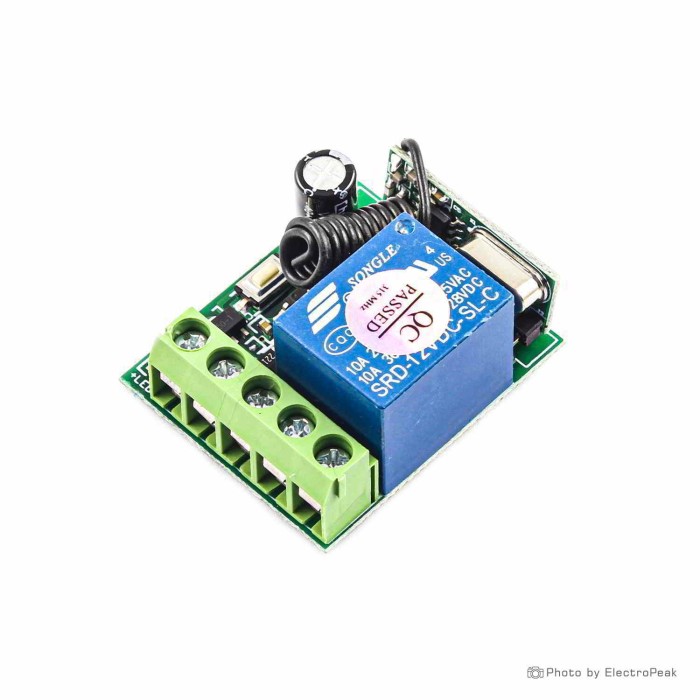

1 Channel 315MHz Remote Control - Brown is a wireless learning code remote control switch with a receiver module and case. It is designed for wireless remote switching and supports easy transmitter pairing. The unit has a small size, stable and reliable performance, and high receive sensitivity. The product is supplied without a battery, and the suitable battery is A27. It can be used with fixed code operation and supports different control modes through the receiver learning button.
Features of 1 Channel 315MHz Remote Control - Brown
- Wireless learning code operation
- Single-channel remote control
- Easy transmitter pairing
- High receive sensitivity
- Stable and reliable performance
- Small size
- No battery included
- A27 battery required
- Self-lock mode support
- Inter-lock mode support
- Jog mode support
Specifications of 1 Channel 315MHz Remote Control - Brown
- Receiver operating voltage: DC 12V
- Receiver operating frequency: 315MHz
- Receiver sensitivity: <-105dB
- Receiver encoding type: Fixed code
- Receiver encoding type: Welding code to achieve pairing
- Receiver oscillation resistance: 820K
- Receiver size: 32 x 32 x 16.5mm
- Transmitter working voltage: DC 12V
- Transmitter frequency: 315MHz
- Transmitter encoding type: Fixed code
- Transmitter firing range: 100 meter
- Transmitter actual use range: about 10-30 meters
- Transmitter size: 63 x 39 x 11.5mm
- Transmitter shock resistance: 4.7M
How to Use 1 Channel 315MHz Remote Control - Brown
- Press the receiver learn button once until the indicator flashes once.
- Press the remote control button to complete learning.
- Use self-lock mode, inter-lock mode, or jog mode as needed.
More Info
- Wireless RF control does not require direction.
- The signal can pass through walls.
- No wiring is needed.
- Each switch has an independent password.
- NO is normally open and COM is the common port.
- When the relay is energized, NO and COM are connected.
| Interface Type | Wireless |
|---|---|
| Operating Voltage (V) | 12V |
| Dimensions (mm) | Receiver: 32 x 32 x 16.5mm, Remote: 63 x 39 x 11.5mm |
| Frequency Band | 315MHz |
| Encryption | Fixed Code |
| Range (m) | 100m |
| Chipset | Learning Code |
| Accessories | Receiver Module, Remote Control Case |
| Modes | Inter-Lock Mode, Jog Mode, Self-Lock Mode |
| Input Voltage (V) | 12V |
| Application | alarm system industrial control and security, auto door, entrance access, lifting equipment, up and down controller, window |
