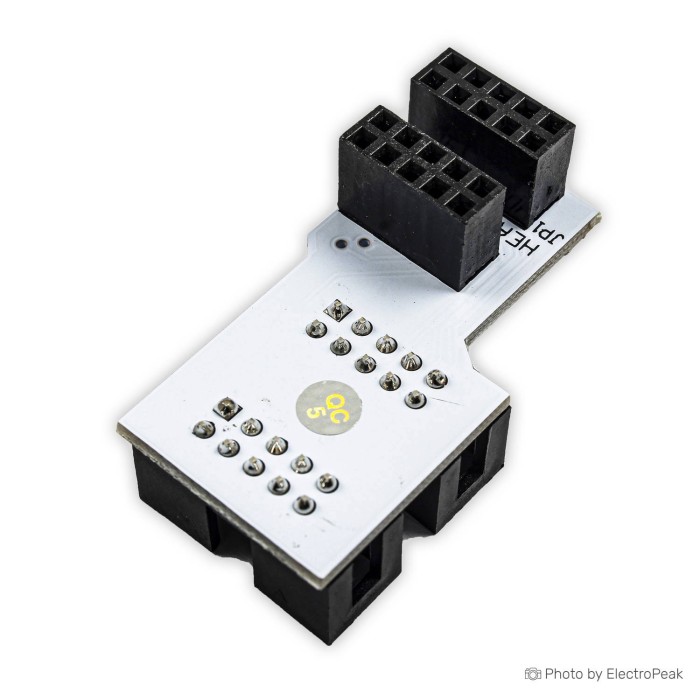

3D Printer Smart Controller Adapter For LCD2004/12864

The 3D Printer Smart Controller Adapter For LCD2004/12864 is an LCD connector adapter for converting an LCD 2004 character display connection to a 12864 graphic LCD shield connection. It is suitable for the MSK GEN control board. It is also intended for Megatronics Board Smart Controller LCD 2004 and LCD 12864 setups. If you need to connect a Smart LCD controller to a Megatronics Board, this adapter provides the required connection. Once connected, the system can be used with the SD card on the Megatronics board.

Features of 3D Printer Smart Controller Adapter For LCD2004/12864

• LCD 2004 to 12864 conversion
• Smart controller adapter
• Megatronics Board support
• MSK GEN board compatibility
• SD card-based operation

Specifications of 3D Printer Smart Controller Adapter For LCD2004/12864

• Product type: LCD connector adapter
• LCD 2004 character display connection
• 12864 graphic LCD shield connection
• Suitable for MSK GEN control board
• For Megatronics Board Smart Controller LCD 2004
• For Megatronics Board Smart Controller LCD 12864
• Compatible with Megatronics Board controller connection
• SD card on the Megatronics board

How to Use 3D Printer Smart Controller Adapter For LCD2004/12864

1. Connect the adapter to the intended controller setup.
2. Use the SD card on the Megatronics board for operation.

More Info

• Do not use the SD card slot on the Smart Controller with the 2004 display screen.
• The adapter is used as a separate connection accessory.
