OMRON 2-Channel SSR Solid State Relay - 5V
$1.9500
In stock
SKU
REL-01-007
Volume discounts:
- +100 6 % $1.8300
- +300 8 % $1.7900
- +500 11 % $1.7400
- +1000 13 % $1.7000
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
2-Channel Relay Module - 5V
Previous
Description

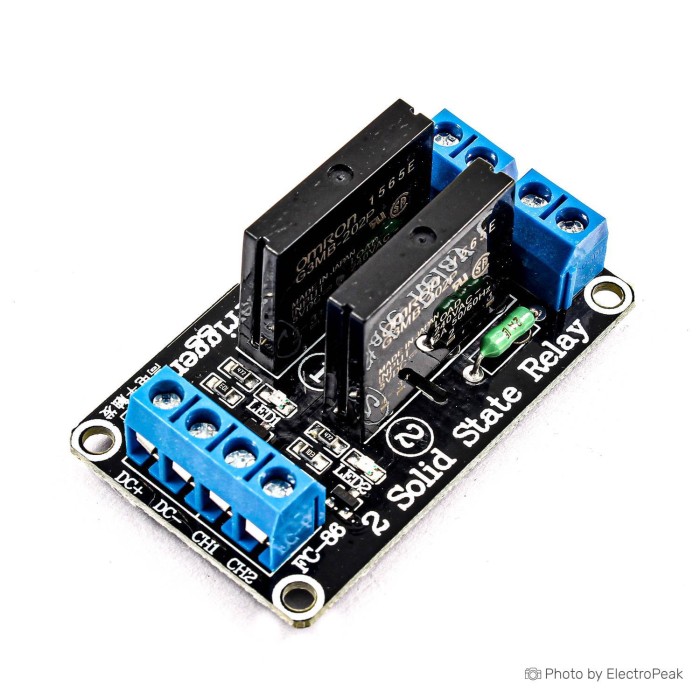

A two-channel relay module featuring 2x Omron G3MB-202P solid state relays. This module is capable of switching AC voltages between 100 and 240V at up to a 2A current. The module can be controlled from a 5V digital source such as an Arduino microcontroller. A resistive type fuse is provided on the module to help protect excessive current draw.
Features
Channel: 2 Channel
Control Voltage: 5V
Working Current: 26.8mAÂ (Max)
Trigger Voltage: 0 ~ 2.5V (Low level)
Trigger Current: 2mA
Output Rating
Rated load voltage: 100V ~ 240V AC
Load current: 0.10A ~Â 2A
Surge current: 30A (60 Hz, 1 cycle)
Size: 55mm x 33mm x 25mm
