OMRON 1-Channel SSR Solid State Relay - 5V
$0.9100
In stock
SKU
REL-01-014
Volume discounts:
- +50 4 % $0.8700
- +100 7 % $0.8500
- +300 9 % $0.8300
- +500 12 % $0.8000
- +1000 14 % $0.7800
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Waveshare Raspberry Pi Relay Board Previous

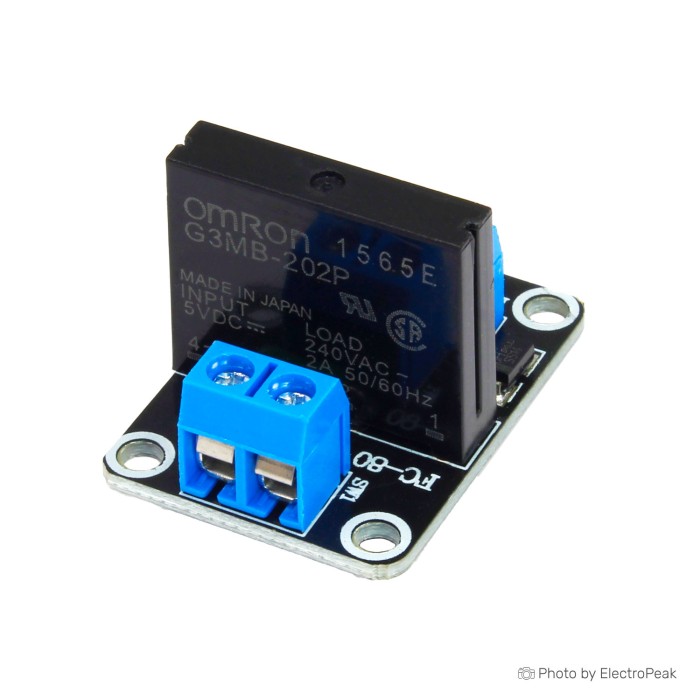

The OMRON 1-Channel SSR Solid State Relay - 5V is a single-channel solid state relay board with fast switching and no mechanical parts. It is designed for low-voltage control signals and supports remote switching of AC loads. The module includes separated input sections for power and trigger signals to help reduce interference. It also includes a resistive type fuse for current protection. This SSR board is suitable for applications that require controlled switching of AC power loads.
Features of OMRON 1-Channel SSR Solid State Relay - 5V
- Single-channel SSR board
- Fast solid state switching
- No mechanical parts
- Separated power and signal inputs
- Resistive type fuse protection
Specifications of OMRON 1-Channel SSR Solid State Relay - 5V
- Control voltage: 5V, 12V, 24V (Optional)
- Working current: 13.8mA (Max)
- Trigger voltage: 0 ~ 2.5V (Low level)
- Trigger current: 2mA
- Size: 25mm x 34mm x 25mm
- SSR model: OMRON G3MB-202P
- Isolation: Phototriac
- Zero crosses: Yes
- Rated load voltage: 100V ~ 240V AC
- Load current: 0.10A ~ 2A
- DC+: Positive power supply (by relay voltage power supply)
- DC-: Connect power negative
- CH: Relay module signal to trigger the end (low to trigger effective)
How to Use OMRON 1-Channel SSR Solid State Relay - 5V
- Connect DC+ to the positive power supply.
- Connect DC- to the power negative.
- Apply a low-level trigger signal to CH.
More Info
- Single-channel 2A solid state relay board
- Supports AC switching from 100V to 240V
- Control input can use a digital source
| Platform | Arduino Uno |
|---|---|
| Interface Type | Digital |
| Operating Voltage (V) | 5V |
| Operating Current (mA) | 160mA |
| Dimensions (mm) | 25x34x25 mm |
| Control Type | Solid State Relay (SSR) |
| Channel Count | 1 |
| Switching Capacity | 2A/240VAC |
| Load Current (A) | 2 |
| Control Signal | Digital (3.3V/5V) |
| Relay Type | SSR |
| Trigger Level | Low Level Trigger (Active LOW) |
| Input Type (AC/DC) | DC |
| Weight (g) | 13 |
