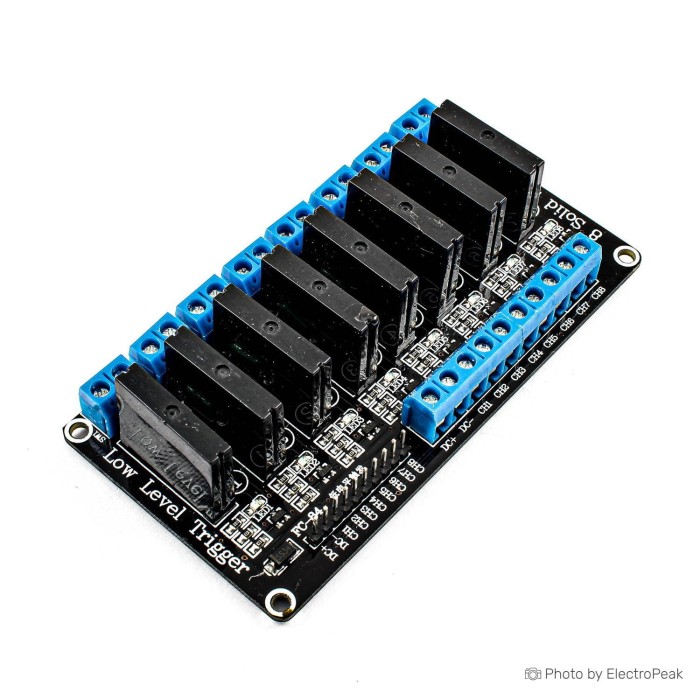

OMRON 8-Channel SSR Solid State Relay - 5V

The OMRON 8-Channel SSR Solid State Relay Module - 5V is an 8-channel solid state relay interface board for electrical switching applications. It is based on the Omron G3MB SSR relay and supports digital control. The module uses low level trigger input and is designed as a solid state relay board. It includes eight channels for relay control. The output section provides 240V 2A switching capability, and the input terminals include DC+ and DC-. This relay module is intended for use as an electronics and robotics control board.

Features of OMRON 8-Channel SSR Solid State Relay Module - 5V

• 8-channel relay board
• 5V control voltage
• Low level trigger
• Solid state relay design
• Omron G3MB SSR relay
• 240V 2A output rating

Specifications of OMRON 8-Channel SSR Solid State Relay Module - 5V

• Input power: 5V DC (160mA)
• Trigger type: LOW LEVEL Trigger
• Dimensions: 103*53*21 mm
• Output with resistive fuse: 240V 2A
• Control voltage: 5V
• Working current: 90mA (Max)
• Trigger voltage: 0 ~ 2.5V (Low level)
• Trigger current: 2mA
• Size: 130mm x 60mm x 15mm
• SSR model: OMRON G3MB-202P
• Isolation: Phototriac
• Zero crosses: Yes
• Rated load voltage: 100V ~ 240V AC
• Load current: 0.10A ~ 2A
• DC+: connect positive power
• DC-: connect negative power
• CH1: relay module signal trigger point (effective low-level trigger)
• CH2: relay module signal trigger point (effective low-level trigger)
• CH3: relay module signal trigger point (effective low-level trigger)
• CH4: relay module signal trigger point (effective low-level trigger)
• CH5: 5-way relay module signal triggering end (low-level trigger valid)
• CH6: 6-way relay module signal triggering end (low-level trigger valid)
• CH7: 7-way relay module signal triggering end (low-level trigger valid)
• CH8: 8-channel relay module signal triggering end (low-level trigger valid)

How to Use OMRON 8-Channel SSR Solid State Relay Module - 5V

1. Connect DC+ to the positive power supply.
2. Connect DC- to the negative power supply.
3. Apply the low level trigger signal to CH1 through CH8 as needed.

More Info

• Each channel is a solid state relay output.
• The module is based on the Omron G3MB SSR relay.
• The input terminals are labeled for power and channel triggering.
