12V Adjustable Delay Timer Relay with LED Display
$4.3800
In stock
SKU
misc-03-006
Volume discounts:
- +25 4 % $4.2000
- +100 6 % $4.1000
- +300 8 % $4.0100
- +500 11 % $3.9200
- +1000 13 % $3.8300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
PCF8563 Real Time Clock RTC Module Previous

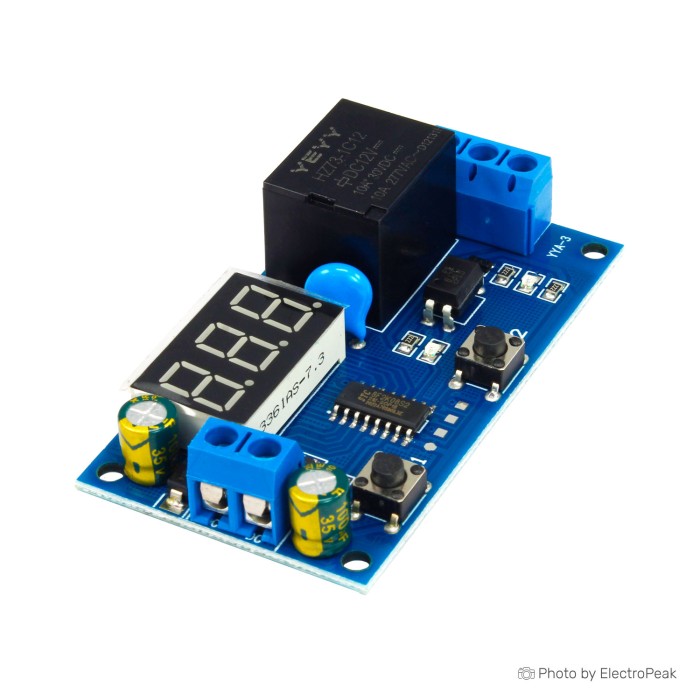

The 12V Adjustable Delay Timer Relay with LED Display is a cycle delay timer module designed for timer-based control applications. It uses an MCU as the main chip for high timer precision and reliable performance. The module operates on DC 12V and includes an LED display for clear status and timing visibility. It is suitable for recurring power on and off control, reciprocating stroke control, burn-in test circuits, and repetitive testing circuits. This 1-channel timer relay also supports intermittent pump control applications.
Features of 12V Adjustable Delay Timer Relay with LED Display
- MCU-based timing control
- LED display included
- 1-channel output
- High timer precision
- Reliable performance
Specifications of 12V Adjustable Delay Timer Relay with LED Display
- Channel: 1 Channel
- Output Voltage: DC: 5V ~ 30V , AC: 220V
- Output Current: 10A
- Quiescent Current: 20mA
- Working Current: 50mA
- Control Voltage: 12V（fluctuate between 10V~16V won't be affected）
- Operating Temperature: -40„ ~ 85„
- Size: 65mm x 36mm x 18mm
How to Use 12V Adjustable Delay Timer Relay with LED Display
- Connect the module to a DC 12V control supply.
- Wire the load to the output terminals within the specified output ratings.
- Set the required delay or cycle timing for the application.
More Info
- Cycle delay timer module
- Suitable for repetitive testing circuits
- Suitable for equipment burn-in tests
| Operating Voltage (V) | 12V |
|---|---|
| Operating Current (mA) | 50 mA |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 65 x 36 x 18 mm |
| Mounting Type | Screw holes |
| Device Type | Timer |
| Chipset | MCU |
| Relay Channels | 1 |
| Adjustment | On-board control buttons |
| Timing Range | 1 second to 999 minutes |
| Functions | Electrical appliance control,Industrial equipment control,Lighting control,Ventilation systems,Water pumps,Heating and cooling equipment,Repetitive testing circuits,Equipment burn-in tests |
| Output Type | Relay |
