2x40 Pin Male Header - 2.54mm Pitch - Pack of 20

100 % of 100
Volume discounts:
  • +100 5 % $0.62
  • +300 6 % $0.61
  • +500 8 % $0.60
  • +1000 9 % $0.59
Shop with confidence Learn More
Availability: 2722 items
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
2x40 Pin Male Header - 2.54mm Pitch - Pack of 20 is available to buy in increments of 5

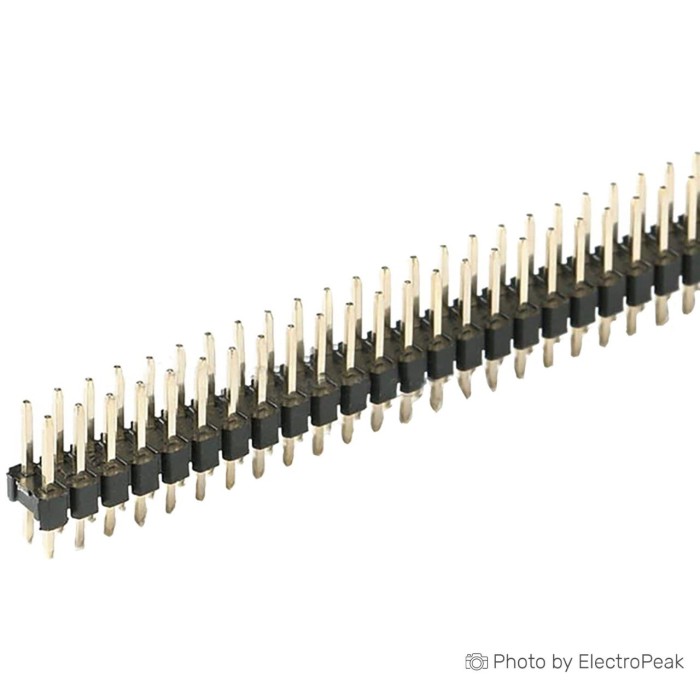

The 2x40 Pin Male Header with a 2.54mm pitch is a fundamental electronic component commonly used for creating connections and interfaces in electronics projects, PCB designs, and prototyping. This male header features a double row of 80 pins spaced at a standard 2.54mm interval, making it compatible with various boards, modules, and components.

Specificatoins of 2x40 Pin Male Header - 2.54mm Pitch0:

  • Connector Type: Male header with 2 row of 40 pins each (total of 80 pins)
  • Pin Pitch: 2.54mm (0.1 inches)
  • Pin Configuration: 2x40 configuration, meaning a two row of 40 pins
  • Mounting angle: Straight needle
  • Color:Black

Features of 2x40 Pin Male Header - 2.54mm Pitch0:

  • High-Density Connectivity: The 2x40 pin male header offers a high number of pins in a compact form factor, suitable for densely packed designs.
  • Versatile Interface: Use it to connect a wide range of components, modules, or devices, enabling complex circuitry and interconnections.
  • Standard Pitch: The 2.54mm pitch adheres to a widely used standard, ensuring compatibility with breadboards, modules, and PCBs.
  • Usage Tip:
  • Solder the 2x40 pin male header onto a PCB to provide a large number of connection points for interfacing with various components, modules, or devices. Ensure proper alignment and spacing during soldering.
  • Caution:
  • Take care when soldering to prevent solder bridges or cold joints that can affect connectivity. Verify proper alignment and orientation of the header pins before soldering to ensure correct connections.

Extra Notes:

Pin header produced by 2.54 millimetres (0.1 in) , 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in) apart distance between the pins, which 2.54 mm apart is most common.
