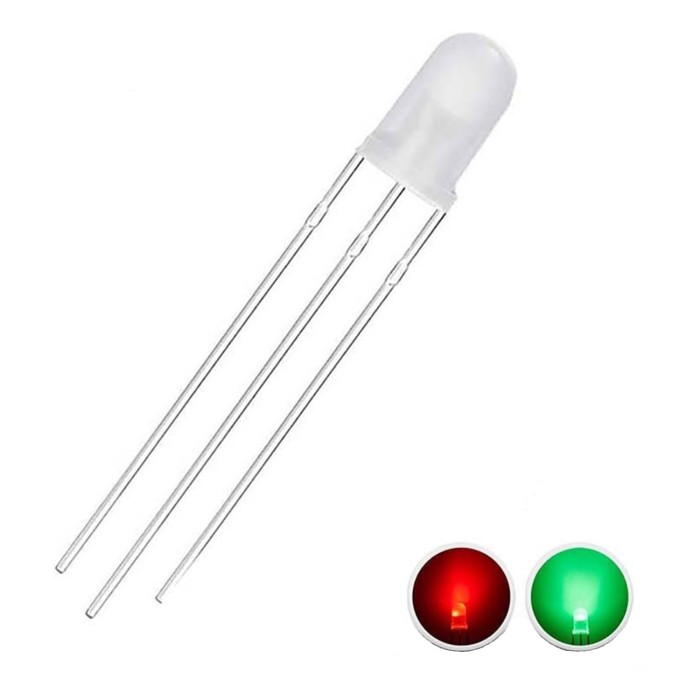

5mm Bi-Color Red Green Common Cathode LED

5mm Bi-Color Red Green Common Cathode LED is a dual-color LED for electronics and indicator applications. It features a 5mm diameter, frosted round lens, and common cathode polarity. The LED provides red and green output in one component. It is designed for projects that need compact, low-power light indication. Each package includes 20 LEDs.

Features of 5mm Bi-Color Red Green Common Cathode LED - 20pcs

• Bi-color red and green output
• Common cathode design
• 5mm frosted round lens
• 20-piece package
• Waterproof and shatter-resistant

Specifications of 5mm Bi-Color Red Green Common Cathode LED - 20pcs

• Diameter: 5 mm
• Color: Green and red
• Voltage: 2.2-2 V DC
• Current: 20 mA
• Operating temperature: -25 to 85 degrees Celsius
• Waterproof and shatter-resistant
• Package quantity: 20 LEDs
• Lens: 5mm Diameter / Frosted / Round
• Emitting Color: Red and Green (Common Cathode)
• Luminous Intensity: R: 1000-2000mcd G: 4000-5000mcd
• Viewing Angle: 120 Degree
• Forward Voltage / Current: R: 2V-2.2V G: 3V-3.2V | 20mA (any color)
• Polarity: Anode (Shorter Part) | Cathode (Longer Part)

How to Use 5mm Bi-Color Red Green Common Cathode LED - 20pcs

1. Identify the anode and cathode terminals.
2. Connect the LED within the specified voltage and current range.
3. Use the red or green output as needed for your project.

More Info

• Suitable for indicator and lighting projects.
• Common cathode configuration.
