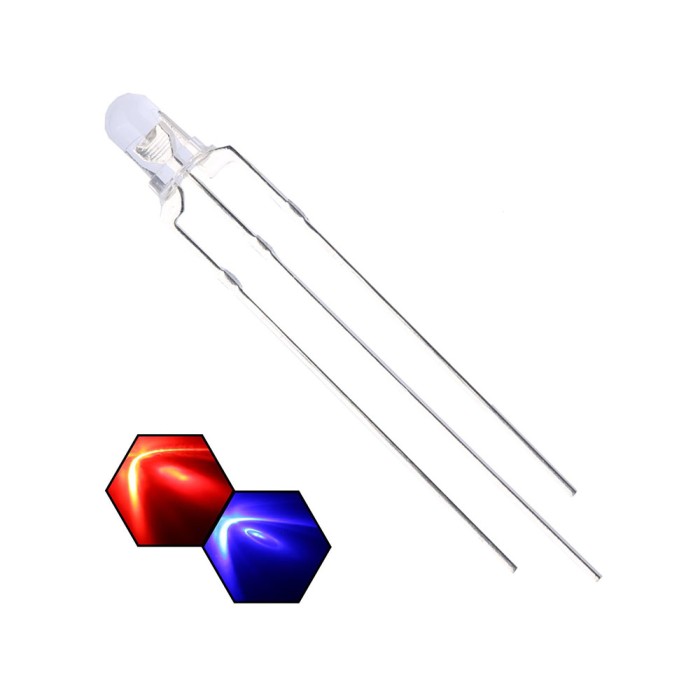

5mm Bi-Color Red Blue Common Cathode LED

5mm Bi-Color Red Blue Common Cathode LED is a frosted, round LED for electronics, display, and indicator applications. It provides red and blue emitting colors in a common cathode configuration. The LED has a 5mm diameter and is designed for 20mA operation. It supports DC forward voltage values for red and blue output and is suitable for use in DIY, Arduino, automotive, and general electronic projects. The operating temperature range is -25 to 85 degrees Celsius. It is described as waterproof and unbreakable.

Features of 5mm Bi-Color Red Blue Common Cathode LED

• Bi-color red and blue output
• Common cathode configuration
• 5mm frosted round lens
• 120 degree viewing angle
• Waterproof and unbreakable

Specifications of 5mm Bi-Color Red Blue Common Cathode LED

• Diameter: 5mm
• Emitting color: Red and Blue
• Voltage: 2.2-2V DC
• Current: 20mA
• Operating temperature: -25 to 85 degrees Celsius
• Lens: 5mm Diameter / Frosted / Round
• Luminous intensity: R: 1000-2000mcd
• Luminous intensity: G: 4000-5000mcd
• Viewing angle: 120 Degree
• Forward voltage / current: R: 2V-2.2V
• Forward voltage / current: G: 3V-3.2V
• Forward voltage / current: 20mA (any color)
• Polarity: Anode (Shorter Part)
• Polarity: Cathode (Longer Part)

How to Use 5mm Bi-Color Red Blue Common Cathode LED

1. Identify the common cathode lead and the anode lead.
2. Connect the LED according to the required color and polarity.
3. Operate within the stated voltage and current values.

More Info

• Common cathode LED package
• Suitable for indicator and lighting projects
