2.42inch OLED Display - SPI/IIC/ Parallel, 24 Pin, SSD1309 Driver (Blue)
$8.9500
In stock
SKU
LCD-01-238
Volume discounts:
- +25 4 % $8.5800
- +50 6 % $8.3900
- +100 8 % $8.2000
- +300 10 % $8.0200
- +500 13 % $7.8300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
2.42inch OLED Display - SPI/IIC/ Parallel, 24 Pin, SSD1309 Driver (Green) Previous

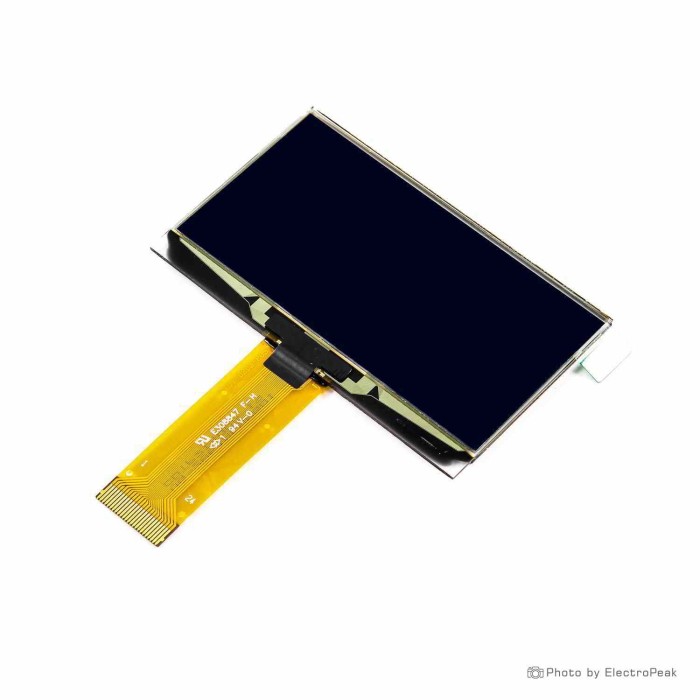

The 2.42 inch Blue OLED Display is a compact, high-contrast display module ideal for embedded and industrial projects. It features a resolution of 128x64 pixels and is driven by the SSD1309 controller. The display supports three interface types—4-wire SPI, I2C, and 8-bit Parallel—making it highly versatile for integration with microcontrollers and development boards. The crisp blue monochrome display ensures excellent visibility even in low light environments.
Specifications of 2.42 Inch Blue OLED Display with SSD1309 Driver
- Display Type: Monochrome OLED
- Display Color: Blue
- Display Size: 2.42 inches
- Resolution: 128 x 64 pixels
- Driver Chip: SSD1309
- Operating Voltage: 3.3V
- Interface Types: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
- Number of Pins: 24
- Pin Pitch: 0.5 mm
- Physical Dimensions: 60.50 × 37.00 × 2.00 mm
- Display Area: 55.01 × 27.49 mm
- Pixel Pitch: 0.43 × 0.43 mm
- Operating Temperature: -40°C to +70°C
| Display Size | 2.42 inch |
|---|---|
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 128x64 pixels |
| Display Driver | SSD1309 |
| Display Interface | Parallel, SPI, I2C |
| Panle Type | PM OLED |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | None |
| Viewing Angle (°) | >160° |
| Operating Temp (°C) | -40°C to +70°C |
| Operating Voltage (V) | 3.3V |
| Pins | 24 |
| Dimensions (mm) | 60.50 × 37.00 × 2.00 mm; 55.01 × 27.49 mm |
| Pitch (mm) | 0.5 mm |
| Pixel Pitch | 0.43 × 0.43 mm |
