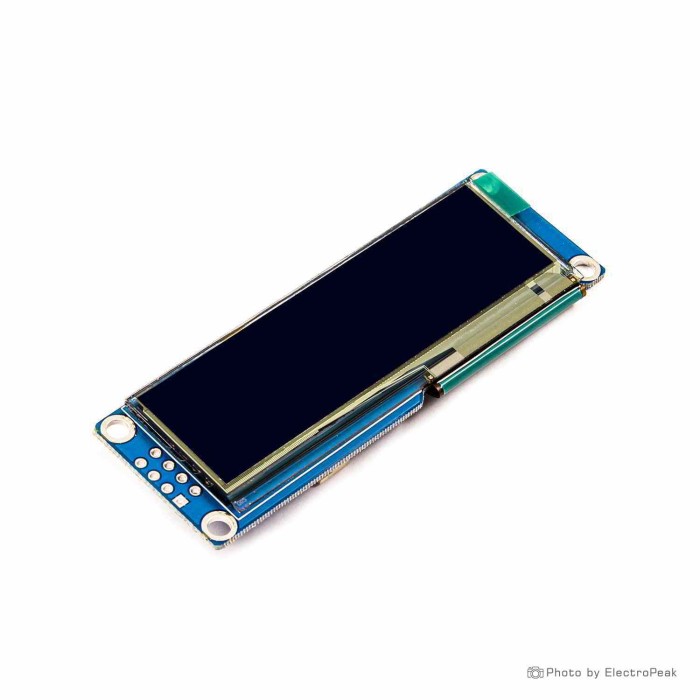

2.23inch OLED Display Module - SPI/IIC, 8 Pin, SSD1305 Driver (Blue)
$9.9500
In stock
SKU
LCD-01-237
Volume discounts:
- +25 4 % $9.5500
- +50 6 % $9.3500
- +100 8 % $9.1500
- +300 10 % $8.9600
- +500 12 % $8.7600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
2.42inch OLED Display - SPI/IIC/ Parallel, 24 Pin, SSD1309 Driver (Blue) Previous
The 2.23-inch monochrome blue OLED display module with SSD1305 driver is an excellent choice for compact electronic and robotic applications. With a resolution of 128x32 pixels and low power consumption, it offers clear text and simple graphics in high contrast. It supports both SPI and I2C communication protocols, making it compatible with a wide range of microcontrollers like Arduino and Raspberry Pi. Its slim design makes it ideal for portable and embedded systems.
Specifications of 2.23-inch Monochrome Blue OLED Display Module with SPI/IIC and SSD1305 Driver
- Display Type: Monochrome PM OLED
- Display Size: 2.23 inches
- Resolution: 128x32 pixels
- Display Color: Blue
- Driver IC: SSD1305
- Interface Type: SPI and I2C (default SPI, configurable to I2C)
- Input Voltage: 3.3V
- Number of Pins: 8 pins, 2.54mm spacing, PH2.0 connector
- PCB Dimensions: 72.3 x 24.5 mm
- Display Area: 55.02 x 13.18 mm
- Pixel Pitch: 0.43 x 0.40 mm
- Operating Temperature: -40 to +85 °C
| Platform | Arduino, ESP, Raspberry Pi Pico, STM |
|---|---|
| Display Size | 2.23 |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 128x32 |
| Display Driver | SSD1305 |
| Display Interface | Parallel, SPI, I2C |
| Panle Type | PM OLED |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | None |
| Viewing Angle (°) | >160° |
| Operating Temp (°C) | -40 to 85 |
| Operating Voltage (V) | 3.3V |
| Pins | 8 |
| Dimensions (mm) | 55.02 x 13.18 mm |
| Pixel Pitch | 0.43 x 0.40 mm |
