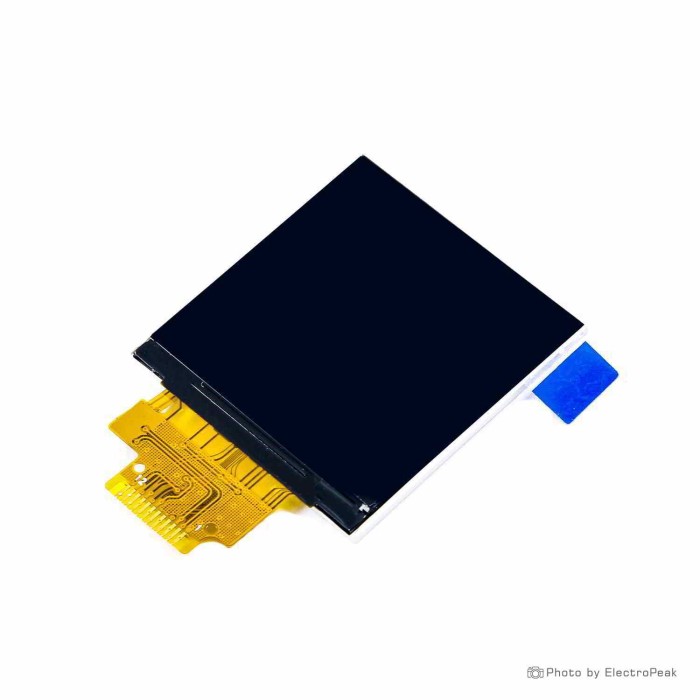

1.54inch TFT LCD - SPI, 12 Pin, ST7789V Driver
$2.2500
In stock
SKU
LCD-01-156
Volume discounts:
- +50 4 % $2.1500
- +100 7 % $2.1000
- +300 9 % $2.0500
- +500 11 % $2.0000
- +1000 13 % $1.9600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
1.69inch TFT LCD - SPI, 12 Pin, ST7789V Driver Previous
The 1.54 inch full-color TFT display with ST7789V driver is a compact and high-quality screen suitable for embedded systems, wearable devices, and graphical user interfaces. It features a resolution of 240x240 pixels, offering sharp visuals with low power consumption. The module uses a 4-wire SPI interface and connects via a 12-pin flat cable with 0.7mm pitch. The backlight is powered by 3 parallel white LEDs, providing even brightness across the screen. With its small footprint and 3.3V operation, this display is ideal for low-power and space-constrained applications.
Specifications of 1.54 inch SPI TFT LCD with ST7789V Driver
- Display Type: TFT & IPS LCD
- Size: 1.54 inches
- Resolution: 240(H)RGB × 240(V) pixels
- Driver Chip: ST7789V
- Interface: 4-wire SPI
- Input Voltage: 3.3V
- Operating Current: 30 mA
- Power Consumption: 0.06 W
- Number of Pins: 12 (0.7 mm pitch flat cable)
- Operating Temperature: -20 to +70 °C
- Backlight Type: 3 white LEDs (parallel)
- Physical Size: 31.52 × 33.72 × 1.9 mm
- Active Display Area: 27.72 × 27.72 mm
| Platform | Arduino, Raspberry Pi, ESP, Raspberry Pi Pico, STM |
|---|---|
| Display Size | 1.54 inch |
| Display Size Range | 1 inch to 1.99 inch |
| Display Resolution | 240x240 |
| Display Driver | ST7789V |
| Display Interface | SPI |
| Panle Type | IPS |
| Display Color Type | Full Color |
| Touchscreen Type | None |
| Backlight Type | White LED |
| Operating Temp (°C) | -20 to 70 |
| Operating Voltage (V) | 3.3V |
| Pins | 12 |
