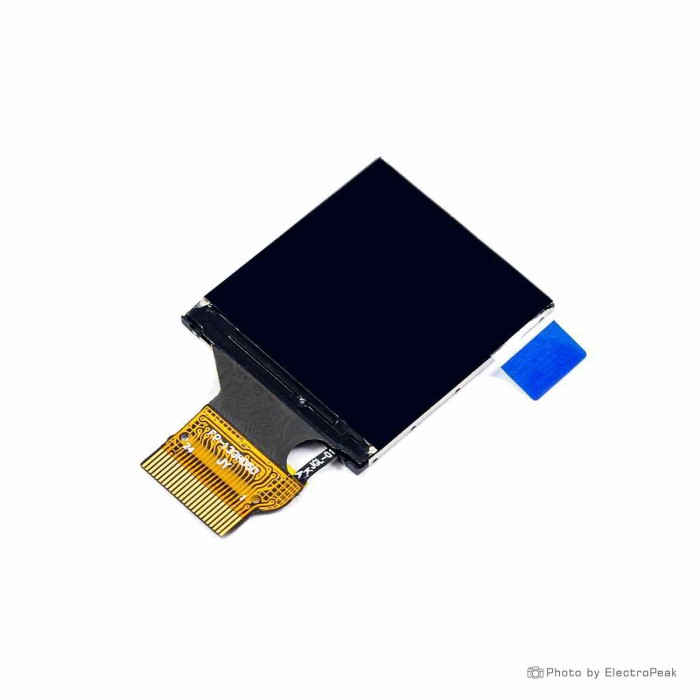

1.3inch TFT LCD - SPI/Parallel, 24 Pin, ST7789V Driver
$1.9500
In stock
SKU
LCD-01-152
Volume discounts:
- +50 4 % $1.8700
- +100 6 % $1.8300
- +300 8 % $1.7900
- +500 10 % $1.7500
- +1000 12 % $1.7100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TM1637 4-Digit 7-Segment Display Module Previous
The 1.3-inch full-color TFT display with ST7789V driver is a compact and high-resolution LCD module featuring IPS technology. It supports a 240x240 pixel resolution and is ideal for wearable electronics, smart gadgets, and other embedded display applications. It comes with a 24-pin flat cable and supports both SPI and parallel communication interfaces.
This display operates at 3.3V with low current consumption and uses two white LEDs for backlight. With its small size, wide viewing angles, and vivid color reproduction, it is a great fit for portable and industrial projects that require a crisp display.
Key Features of 1.3 Inch TFT Display with ST7789V Driver
- Full color display: 240x240 pixel resolution
- IPS technology: wide viewing angles and high image quality
- ST7789V driver: fast and accurate display control
- Interface: SPI / Parallel supported
- 24-pin FPC cable: compact and easy to integrate
Specifications of 1.3 Inch TFT Display with ST7789V Driver
- Display type: TFT & IPS
- Size: 1.3 inches
- Resolution: 240(H)RGB x 240(V)
- Driver IC: ST7789V
- Interface: SPI / Parallel
- Pin count: 24 (FPC 0.5mm pitch)
- Input voltage: 3.3V
- Operating current: 20mA
- Operating temperature: -20°C to +70°C
- Backlight: 2 white LEDs (parallel)
- Display area: 23.4mm x 23.4mm
- Physical size: 26.16mm x 29.22mm x 1.5mm
| Platform | Arduino, ESP, Raspberry Pi Pico, STM |
|---|---|
| Display Size | 1.3 inches |
| Display Size Range | 1 inch to 1.99 inch |
| Display Resolution | 240x240 |
| Display Driver | ST7789V |
| Display Interface | Parallel, SPI |
| Panle Type | IPS |
| Display Color Type | Full Color |
| Touchscreen Type | None |
| Backlight Type | White LED |
| Viewing Angle (°) | wide viewing angles |
| Operating Temp (°C) | -20 to 70 |
| Operating Voltage (V) | 3.3V |
| Pins | 24 |
| Dimensions (mm) | 23.4mm x 23.4mm; 26.16mm x 29.22mm x 1.5mm |
