0.96inch TFT LCD - SPI, 13 Pin, ST7735 Driver
$0.9500
In stock
SKU
LCD-01-146
Volume discounts:
- +50 3 % $0.9200
- +100 5 % $0.9000
- +300 7 % $0.8800
- +500 8 % $0.8700
- +1000 11 % $0.8500
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
0.96inch TFT LCD - SPI/Parallel, 30 Pin, ST7735 Driver Previous

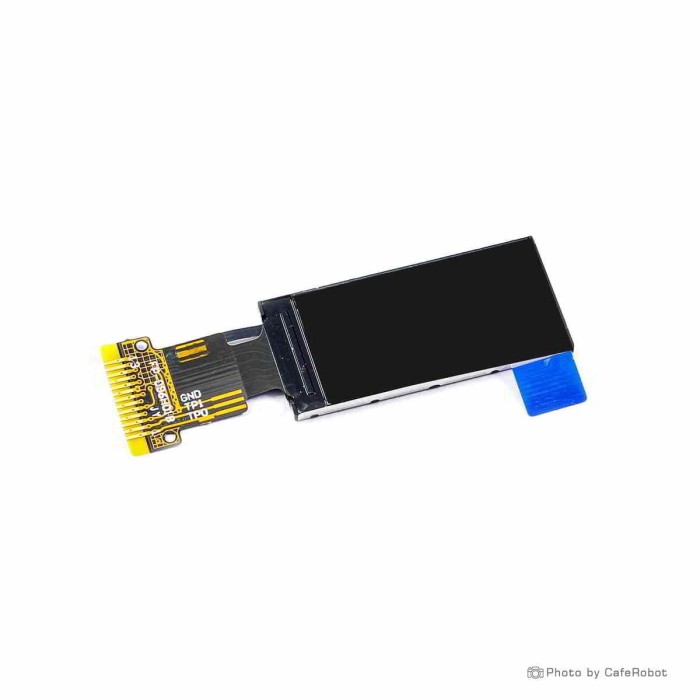

The 0.96 inch full-color TFT display with ST7735 driver is a compact and efficient module ideal for embedded and portable projects. Featuring an IPS TFT panel and single LED backlight, it delivers vibrant colors and sharp visuals. It uses a 4-line SPI interface and a 13-pin 0.7mm flat cable, making it easy to connect with microcontrollers like Arduino and STM32. With low power consumption, compact size, and wide operating temperature range, this display is a perfect fit for wearable, embedded, and IoT applications.
Specifications of 0.96 inch SPI TFT LCD with ST7735 Driver
- Name: TFT-IPS LCD
- Size: 0.96 inches
- Resolution: 80(H)RGB x 160(V)
- Control Chip: ST7735
- Display Area: 10.8 x 21.7 mm
- Physical Size: 13.5 x 27.95 x 1.5 mm
- Interface Type: 4-line SPI
- Number of Pins: 13 (0.7 mm pitch)
- Working Voltage: 3.3 V
- Working Current: 20 mA
- Working Temperature: -20 to +70°C
- Backlight Type: 1 LED
- Display Color: RGB
| Display Size | 0.96 |
|---|---|
| Display Size Range | 0.99 inch and smaller |
| Display Resolution | 80(H)RGB x 160(V) |
| Display Driver | ST7735 |
| Display Interface | SPI |
| Panle Type | IPS |
| Display Color Type | Full Color |
| Touchscreen Type | None |
| Backlight Type | LED |
| Operating Temp (°C) | -20 to 70 |
| Operating Voltage (V) | 3.3V |
| Pins | 13 |
| Dimensions (mm) | 10.8 x 21.7 mm; 13.5 x 27.95 x 1.5 mm |
| Operating Current (mA) | 20 mAnInterface: 4-line SPInPin pitch: 0.7mm |
