0.96inch TFT LCD - SPI/Parallel, 30 Pin, ST7735 Driver
$2.5000
In stock
SKU
LCD-01-147
Volume discounts:
- +50 4 % $2.3900
- +100 6 % $2.3400
- +300 9 % $2.2800
- +500 11 % $2.2300
- +1000 13 % $2.1800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
1.05inch TFT LCD - SPI, 13 Pin, GC9A01 Driver Previous

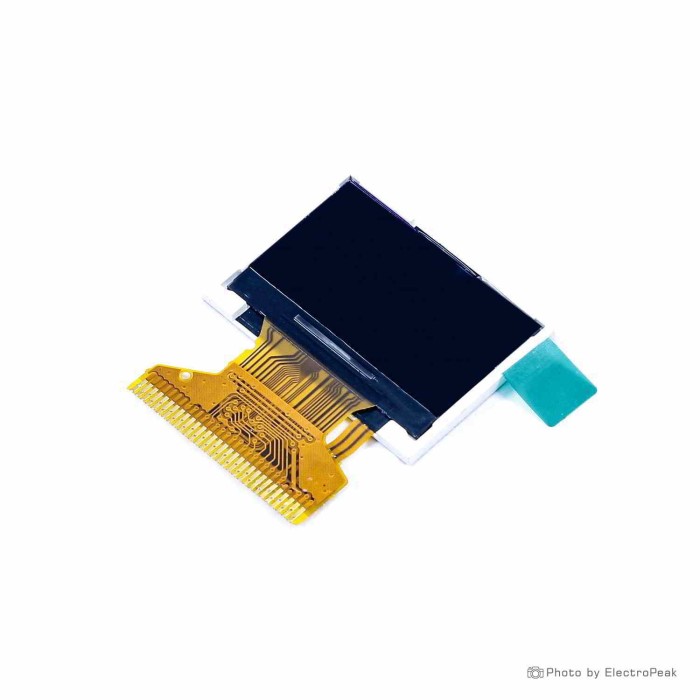

The 0.96 inch TFT LCD display is a compact full-color display module with an ST7735 driver and SPI/Parallel interface. It is designed as a TFT-IPS LCD full color module with a 128×64 pixel RGB resolution. The display uses a 30-pin flat cable connection and offers a small footprint for electronic and robotics projects. This TFT LCD display includes the listed electrical, physical, and interface specifications below.
Features of 0.96 Inch TFT LCD Display - SPI/Parallel, 30 Pin, ST7735 Driver
- Full-color TFT-IPS LCD
- ST7735 control chip
- SPI/Parallel interface
- 30-pin flat cable connection
- Compact display size
Specifications of 0.96 Inch TFT LCD Display - SPI/Parallel, 30 Pin, ST7735 Driver
- Display Type: TFT-IPS LCD Full Color
- Size: 0.96 inch
- Resolution: 128×64 pixels (RGB)
- Control Chip: ST7735
- Display Color: Full Color
- Display Area: 21.744×10.864 mm
- Physical Size: 26.7×19.26×1.6 mm
- Interface Type: Parallel / Serial
- Number of Pins: 30 (0.7 mm pitch)
- Working Voltage: 3.3 V
- Working Current: 20 mA
- Operating Temperature: -20 to +70 °C
- Backlight Type: 1 LED
How to Use 0.96 Inch TFT LCD Display - SPI/Parallel, 30 Pin, ST7735 Driver
- Prepare the display connection with the 30-pin flat cable.
- Wire the module according to the required parallel or serial interface.
- Apply the working voltage of 3.3 V.
- Use the display with the appropriate controller setup for the ST7735 driver.
More Info
- Interface Type: Parallel / Serial
- Operating Temperature: -20 to +70 °C
| Platform | Arduino, ESP, Raspberry Pi Pico, STM |
|---|---|
| Display Size | 0.96 |
| Display Size Range | 0.99 inch and smaller |
| Display Resolution | 128x64 |
| Display Driver | ST7735 |
| Display Interface | Parallel, SPI |
| Panle Type | IPS |
| Display Color Type | Full Color |
| Touchscreen Type | None |
| Backlight Type | White LED |
| Operating Temp (°C) | -20 to +70 °C |
| Operating Voltage (V) | 3.3 |
| Pins | 30 |
| Dimensions (mm) | 21.744×10.864 mm; 26.7×19.26×1.6 mm |
| Operating Current (mA) | 20 mA |
| Pitch (mm) | 0.7 mm |
