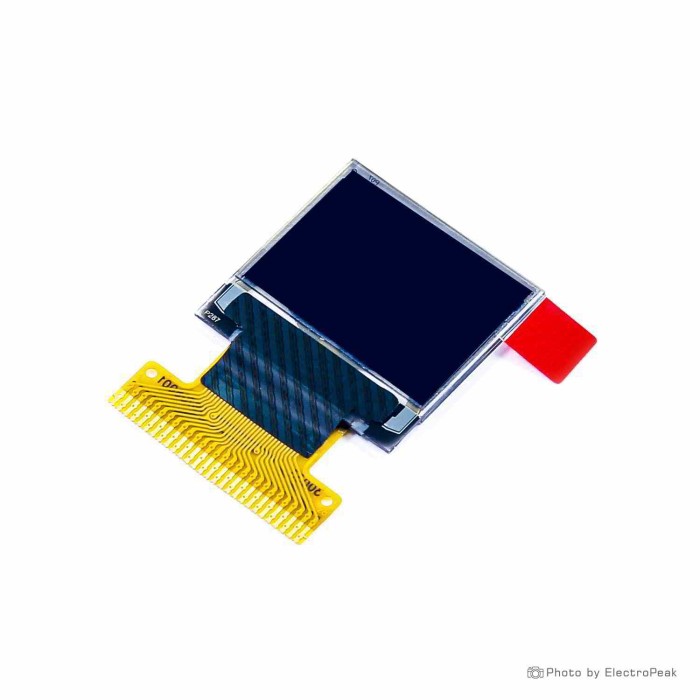

0.66inch OLED Display - SPI/Parallel/IIC, 28 Pin, SSD1306 Driver (White)
$1.5000
In stock
SKU
LCD-01-193
Volume discounts:
- +50 5 % $1.4300
- +100 7 % $1.4000
- +300 9 % $1.3600
- +500 11 % $1.3300
- +1000 14 % $1.2900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
0.66inch OLED Display - SPI, 16 Pin, SSD1306 Driver (White) Previous
The 0.66 inch white OLED display with SSD1306 driver is a compact and efficient module, ideal for wearable electronics, IoT projects, and portable systems. With a 64x48 pixel resolution, it is suitable for displaying simple text and graphics in small-scale applications.
This display supports 8-bit parallel (68XX/80XX), 4-wire SPI, and I2C interfaces, making it highly versatile. It uses a 28-pin flat cable with 0.65 mm pin pitch. Its small footprint of 18.46x18.1 mm and low power requirement make it a smart choice for compact designs.
Specifications of 0.66 inch SPI/IIC/Parallel White OLED Display with SSD1306 Driver
- Type: OLED Display
- Size: 0.66 inches
- Resolution: 64 x 48 pixels
- Driver Chip: SSD1306
- Display Color: Single Color (White)
- Interface Type: 8-bit 68XX/80XX Parallel, 4-wire SPI, I2C
- Number of Pins: 28
- Pin Distance: 0.65 mm
- Working Voltage: 3.3 V
- Physical Size: 18.46 x 18.1 x 1.25 mm
- Display Area: 13.42 x 10.06 mm
- Pixel Pitch: 0.21 x 0.21 mm
- Working Temperature: -40 to +85 °C
| Display Size | 0.66 inch |
|---|---|
| Display Size Range | 0.99 inch and smaller |
| Display Resolution | 64x48 |
| Display Driver | SSD1306 |
| Display Interface | Parallel, SPI, I2C |
| Panle Type | PM OLED |
| Display Color Type | Monochrome |
| Touchscreen Type | None |
| Backlight Type | None |
| Operating Temp (°C) | -40 to 85 |
| Operating Voltage (V) | 3.3V |
| Pins | 28 |
| Dimensions (mm) | 18.46 x 18.1 x 1.25 mm; 13.42 x 10.06 mm |
| Pitch (mm) | 0.65 mm |
| Pixel Pitch | 0.21 x 0.21 mm |
