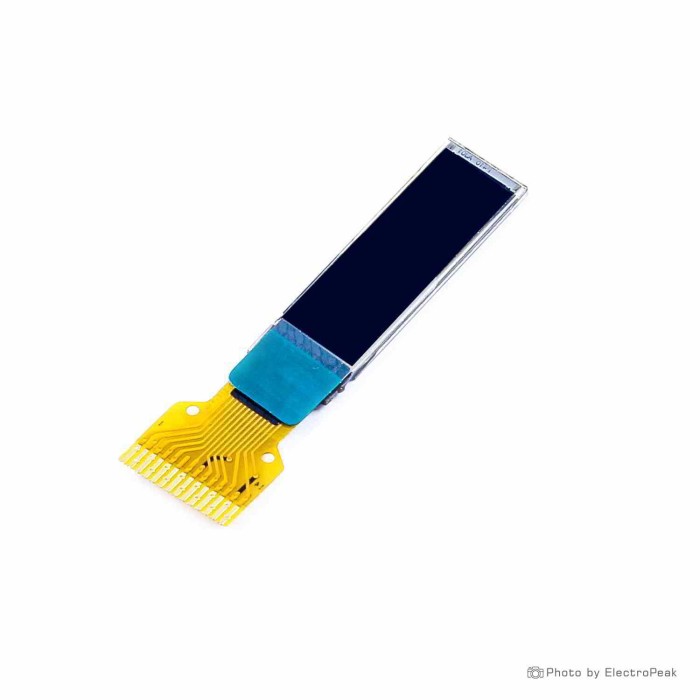

0.63inch OLED Display - IIC, 14 Pin, SSD1312 Driver (White)

$0.8000
In stock
SKU
LCD-01-192
Volume discounts:
  • +50 4 % $0.7700
  • +100 5 % $0.7600
  • +300 8 % $0.7400
  • +500 9 % $0.7300
  • +1000 11 % $0.7100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
0.66inch OLED Display - SPI/Parallel/IIC, 28 Pin, SSD1306 Driver (White) Previous 0.66inch OLED Display - SPI/Parallel/IIC, 28 Pin, SSD1306 Driver (White)
More Information
Display Size0.63 inch
Display Size Range0.99 inch and smaller
Display Resolution128x28 pixels
Display DriverSSD1312
Display InterfaceI2C
Panle TypePM OLED
Display Color TypeMonochrome
Touchscreen TypeNone
Backlight TypeNone
Operating Temp (°C)-40 to 85
Operating Voltage (V)3.3V
Pins14
Dimensions (mm)21.54x6.62x1.22 mm; 15.58x3.62 mm
Pitch (mm)0.62 mm
Pixel Pitch0.13x0.13 mm
