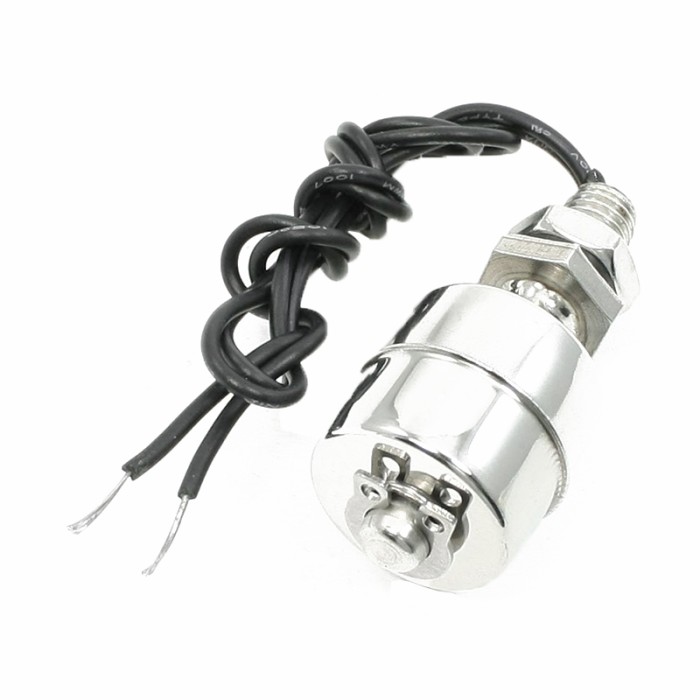

ZS4510 Liquid Level Sensor - Float Switch
$3.2500
In stock
SKU
SEN-20-025
Volume discounts:
- +25 4 % $3.1100
- +100 6 % $3.0400
- +300 9 % $2.9700
- +500 10 % $2.9100
- +1000 13 % $2.8400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ZS6010 Liquid Level Sensor - Float Switch Previous
The ZS4510 Liquid Level Sensor - Float Switch is a liquid level sensor for monitoring and controlling liquid levels in tanks, containers, and other applications. It is built as a float switch for high and low level detection in different liquids. The body uses Stainless Steel, SUS304 for durability and corrosion resistance. The ZS4510 Liquid Level Sensor - Float Switch is specified with a maximum contact rating of 10W and a maximum switching voltage of 100V DC.
Features of ZS4510 Liquid Level Sensor - Float Switch
- Float switch design
- High and low level detection
- SUS304 stainless steel body
- Corrosion-resistant construction
- Liquid level monitoring
Specifications of ZS4510 Liquid Level Sensor - Float Switch
- Product Name: Floating Switch
- Model No.: ZS4510
- Max Contact Rating: 10W
- Max Switching Voltage: 100V DC
- Max Switching Current: 0.5A
- Max Breakdown Voltage: 220V DC
- Max Carry Current: 1A
- Max Contact Resistance: 100mOhm
- Max Temperature: -30°C to +120°C
- Material: Stainless Steel, SUS304
- Thread Diameter: 10mm
- Thread Length: 15mm
- Switch Total Length: 45mm
- Color: Silver Tone
- Dimensions: 45mm x 10mm (Switch Length x Thread Diameter)
How to Use ZS4510 Liquid Level Sensor - Float Switch
- Install the float switch at the desired tank or container position.
- Connect it for liquid level detection and monitoring.
- Use it for high or low level switching as required.
More Info
- Suitable for tanks, containers, and other applications.
- Designed for accurate liquid level detection.
| Operating Temp (°C) | -30°C to +120°C |
|---|---|
| Dimensions (mm) | 45mm x 10mm (Switch Length x Thread Diameter) |
| Mounting Type | M10 Thread |
| Output Type | Point |
| Environmental Parameter | Liquid Level |
| Probe Type | Immersion |
| Chipset | ZS4510 |
| Relay Output | No |
