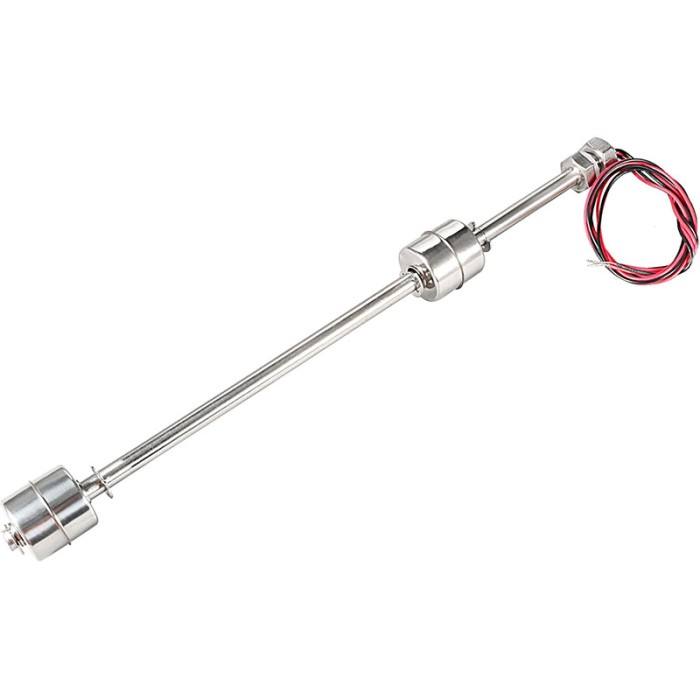

ZS30010-2 Liquid Level Sensor - Double Balls Float Switch
$6.5000
In stock
SKU
SEN-20-034
Volume discounts:
- +25 4 % $6.2200
- +50 6 % $6.0800
- +100 8 % $5.9500
- +300 11 % $5.8100
- +500 13 % $5.6700
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ZS50010-2 Liquid Level Sensor - Double Balls Float Switch Previous
The ZS30010-2 Liquid Level Sensor is a double balls float switch for liquid level detection in tanks, pools, and other liquid containers. It is built from stainless steel and uses a double ball design for precise level control. This liquid level sensor supports vertical mounting and reversible switch operation. The PTFE high temperature line is included for wiring. It operates across a wide temperature range and is designed for use where level switching is required.
Features of ZS30010-2 Liquid Level Sensor - Double Balls Float Switch
- Double balls float switch
- Stainless steel body
- Reversible switch operation
- Vertical mounting
- PTFE high temperature line
Specifications of ZS30010-2 Liquid Level Sensor - Double Balls Float Switch
- Color: Silver
- Material: Stainless Steel
- Max Contact Rating: 10W
- Max Switching Voltage: 240V AC
- Max Breakdown Voltage: 220V DC
- Max Switching Current: 0.5A
- Max Carry Current: 1A
- Max Contact Resistance: 100mΩ
- Operating Pressure: 10kg/cm²
- Max Pressure: 0.2 MPa
- Applicable Proportion: 0.75
- Operating Temperature: -10°C to +120°C
- Switch Operation: Reversible
- Wire: PTFE High Temperature Line
- Installation Method: Vertical Mounting
- Thread Diameter: 10mm
How to Use ZS30010-2 Liquid Level Sensor - Double Balls Float Switch
- Install the sensor with vertical mounting.
- Connect the PTFE high temperature line.
- Use the switch operation for liquid level detection.
More Info
- Suitable for tanks, pools, and other liquid containers.
- Designed for liquid level detection.
| Operating Voltage (V) | 240V AC |
|---|---|
| Operating Current (mA) | 0.5A, 1A |
| Operating Temp (°C) | -10°C to +120°C |
| Mounting Type | M10 Thread |
| Output Type | Digital |
| Environmental Parameter | Liquid Level |
| Probe Type | Immersion |
| Chipset | ZS30010-2 |
| Relay Output | No |
