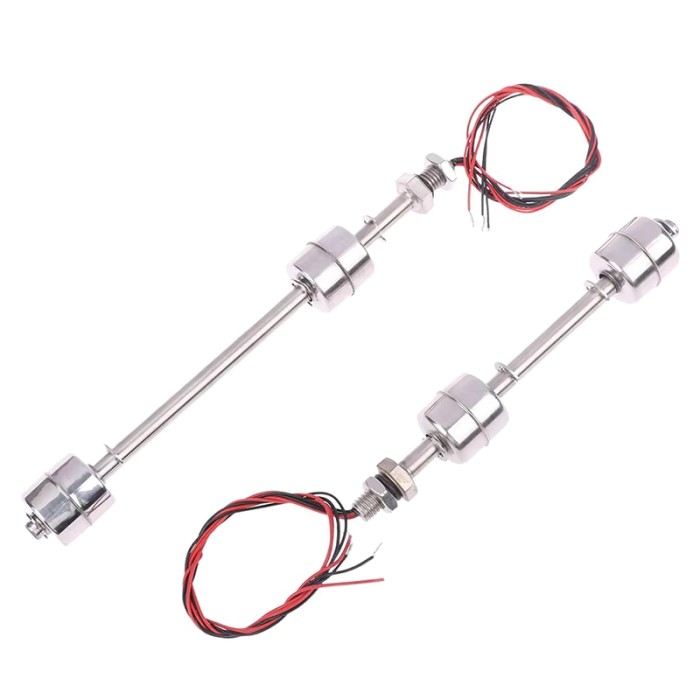

ZS20010-2 Liquid Level Sensor - Double Balls Float Switch
$5.5000
In stock
SKU
SEN-20-032
Volume discounts:
- +25 4 % $5.2800
- +50 6 % $5.1700
- +100 8 % $5.0600
- +300 10 % $4.9500
- +500 12 % $4.8300
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence
Learn More
ZS25010-2 Liquid Level Sensor - Double Balls Float Switch
Previous
The ZS20010-2 Liquid Level Sensor - Double Balls Float Switch is a high-performance device designed to provide accurate liquid level detection in tanks, pools, and other liquid containers. This float switch is made from durable stainless steel, ensuring high corrosion resistance and longevity. The double ball design allows for more precise control over liquid levels, making it suitable for applications where dual-level detection is required. With a maximum switching voltage of 240V AC and a maximum contact rating of 10W, the ZS20010-2 is versatile for a variety of industrial and household uses. It supports vertical mounting and operates reliably in temperatures ranging from -10°C to +120°C.
Specifications of ZS20010-2 Liquid Level Sensor - Double Balls Float Switch
-
Color: Silver
-
Material: Stainless Steel
-
Max Contact Rating: 10W
-
Max Switching Voltage: 240V AC
-
Max Breakdown Voltage: 220V DC
-
Max Switching Current: 0.5A
-
Max Carry Current: 1A
-
Max Contact Resistance: 100mΩ
-
Operating Pressure: 10kg/cm²
-
Max Pressure: 0.2 MPa
-
Applicable Proportion: 0.75
-
Operating Temperature: -10°C to +120°C
-
Switch Operation: Reversible
-
Wire: PTFE High Temperature Line
-
Installation Method: Vertical Mounting
-
Thread Diameter: 10mm
Datasheet of ZS20010-2 Liquid Level Sensor - Double Balls Float Switch
