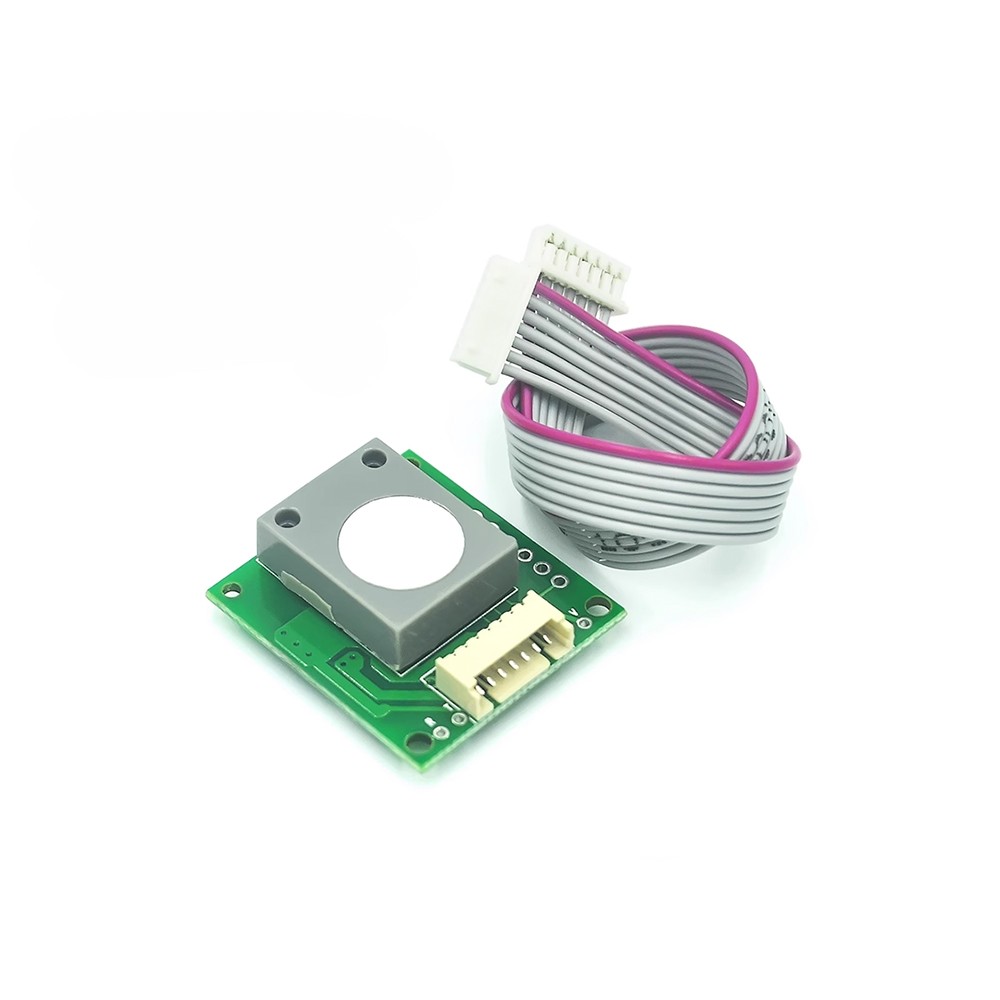

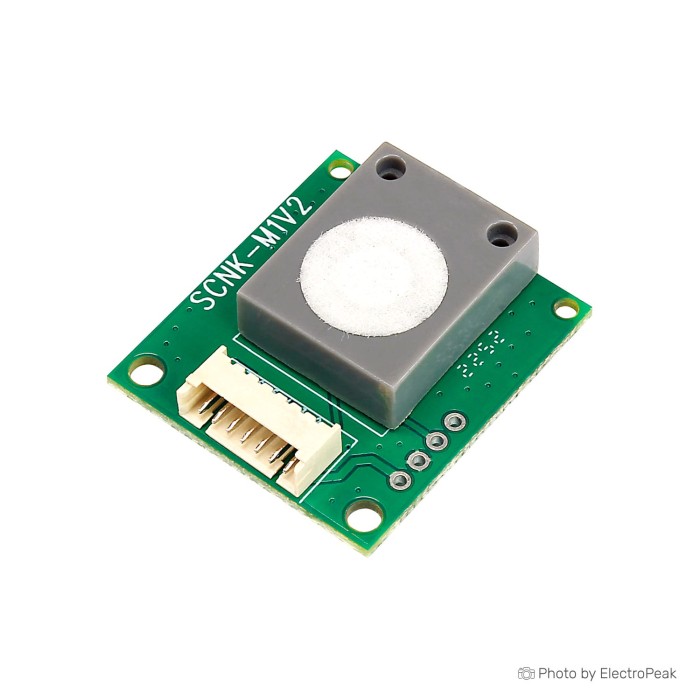

ZE08-CH2O Formaldehyde Concentration Measurement Module
$8.5000
In stock
SKU
SEN-16-033
Volume discounts:
- +25 4 % $8.1600
- +50 6 % $8.0000
- +100 8 % $7.8300
- +300 10 % $7.6600
- +500 12 % $7.4900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MICS-5524 Air Quality Gas Sensor Module Previous
ZE08B-CH2O is a general-purpose and miniaturization electrochemical formaldehyde detection module. It utilizes electrochemical principle to detect CH2O in air which makes the module with high selectivity and stability. It is built-in temperature sensor to make temperature compensation. It has the digital output and analog voltage output at the same time. It is a combination of mature electrochemical detection principle and sophisticated circuit design.
Specifications of ZE08-CH2O Formaldehyde Concentration Measurement Module :
- Model No. :ZE08B-CH2O
- Target Gas: CH2O
- Interference Gas: Alcohol, CO &ect.
- Output: UART output(3V Electrical Level)
- Working Voltage : 3.7V~5.5V( With voltage reverse connect protection)
- Warm up time: ≤3 minutes
- Response time: ≤60s
- Resume time: ≤60s
- Detection Range: 0～1.6ppm
- Resolution: ≤0.01ppm
- Operating Temp.: 0„～50„
- Operating Hum.: 15%RH-90ï¼…RH(No condensation)
- Storage temp.: 0～25„
Applications of ZE08-CH2O Formaldehyde Concentration Measurement Module:
- Portable detector
- air-quality monitor
- air cleaner
- air renewal system
- air conditioner
- smart home
| Interface Type | Analog, UART |
|---|---|
| Operating Voltage (V) | 3.7V~5.5V |
| Operating Current (mA) | ≤5mA |
| Operating Temp (°C) | 0 to 50 |
| Dimensions (mm) | 32.5mm x 23.5mm x 16mm |
| Mounting Type | THT |
| Output Type | Analog Voltage, Digital |
| Accuracy | ≤0.01ppm |
| Resolution | ≤0.01ppm |
| Response Time | ≤60s |
| Biometric Parameter | Gas Concentration |
| Weight (g) | 5 |
| Application | Air purifiers, Air conditioners, Air quality monitoring, Indoor ventilation systems, Portable gas detectors, Smart home |
| Lifetime | 2 years |
| Target Gas | Formaldehyde (CH2O) |
| Detection Range | 0 to 1.6 ppm |
| Sensor Type | Electrochemical |
