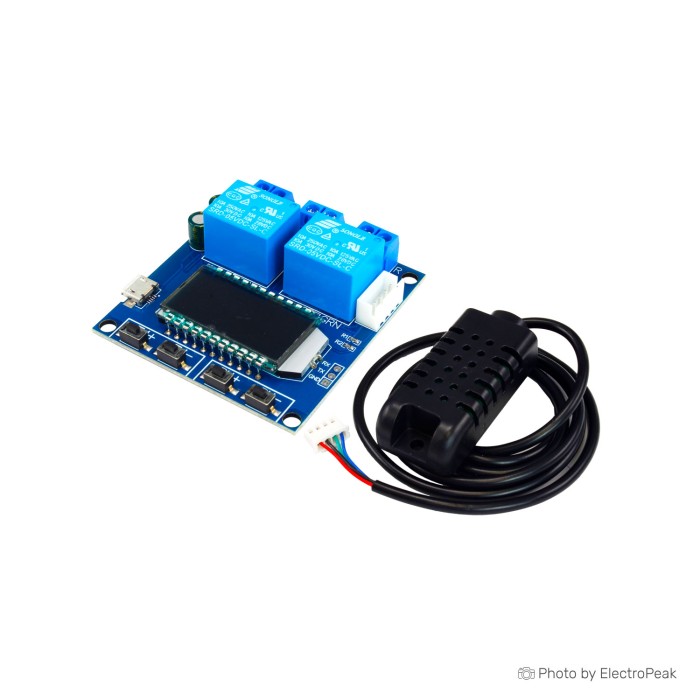

XY-TR01 Digital Temperature & Humidity Control Module
$7.5000
In stock
SKU
SEN-10-063
Volume discounts:
- +25 3 % $7.3000
- +50 4 % $7.2000
- +100 5 % $7.1000
- +300 7 % $7.0100
- +500 8 % $6.9100
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
DHT11 Temperature & Humidity Sensor Module Previous
The XY-TR01 Digital Temperature & Humidity Control Module is a digital thermostat for temperature and humidity monitoring and control. It uses an SHT20 sensor and a digital display for measurement and setup. The module provides two separate relays for temperature and humidity control. It supports automatic switching between heating, cooling, humidifying, and dehumidifying modes. Power can be supplied through 6–30V DC or 5V via microUSB. UART communication is supported for configuration.
Features of XY-TR01 Digital Temperature & Humidity Control Module
- Digital temperature and humidity control
- SHT20 sensor
- Digital display
- Dual relay outputs
- Heating and cooling modes
- Humidification and dehumidification modes
- microUSB power input
- UART communication
- Calibration support
Specifications of XY-TR01 Digital Temperature & Humidity Control Module
- Model: XY-TR01
- Sensor: SHT20 with 1-meter cable
- Temperature Range: -20°C to 60°C
- Humidity Range: 0 to 100% RH
- Measurement Accuracy: 0.1°C
- Output: Two relays for temperature and humidity
- Temperature Modes: Heating and Cooling
- Humidity Modes: Humidification and Dehumidification
- Input Voltage: 6 to 30V DC
- Input Voltage: 5V via microUSB
- Serial Communication: UART
- UART Baud Rate: 9600
- Calibration Support: Yes
- Dimensions: 61x58x20mm
- Output Capacity: Up to 10A
- Size: 6x5.7cm
How to Use XY-TR01 Digital Temperature & Humidity Control Module
- Connect the module to a 6–30V DC supply or 5V via microUSB.
- Wire the sensor and relay outputs as needed for temperature and humidity control.
- Configure the operating thresholds using the buttons or UART.
- Use calibration if adjustment of measured values is required.
More Info
- Automatic mode selection is supported.
- The module supports configuration through UART at 9600 baud.
- The product name naturally fits temperature and humidity control module listings.
| Interface Type | USB, UART |
|---|---|
| Operating Voltage (V) | 6 to 30V DC or 5V via microUSB |
| Operating Temp (°C) | -20 to 60 |
| Dimensions (mm) | 61x58x20mm |
| Mounting Type | Panel Mount |
| Control Type | Relay (Electromechanical) |
| Channel Count | 2 |
| Switching Capacity | 10A/250VAC |
| Load Current (A) | 10A |
| Chipset | XY-TR01 |
| Relay Type | Relay output |
| Display Type | LCD |
| Input Type (AC/DC) | DC |
| Protocols | UART |
| Accessories | SHT20 with 1-meter cable |
| Accuracy | 0.1°C |
| Humidity Range | 0 to 100% RH; Humidification (E) and Dehumidification (d) |
