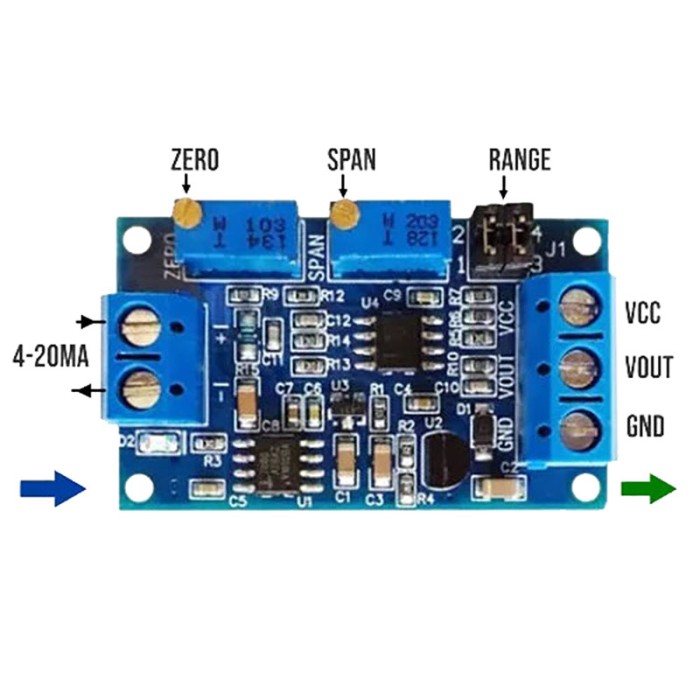

The XY-IT0V Current to Voltage Converter Module is designed for applications requiring the conversion of 4-20mA current signals to a voltage output ranging from 0-10V. This module ensures precise signal transmission and stability, ideal for use in PLCs and other automation systems. It supports both 0-20mA and 4-20mA input signals and provides configurable voltage outputs of 0-3.3V, 0-5V, and 0-10V, making it adaptable for various systems. The module’s adjustable jumpers and potentiometers allow fine-tuning of the output for optimal performance.
Specifications of XY-IT0V Current to Voltage Convertor Module
-
Input Signal: 0-20mA or 4-20mA
-
Output Voltage Range: 0-3.3V, 0-5V, and 0-10V (configurable via jumpers)
-
Power Input Range: 7-36V
-
Adjustment: ZERO and SPAN potentiometers for setting output range
-
Jumper Settings: Configure voltage range via J1 (0-2.5V, 0-3.3V, 0-5V, 0-10V)
-
Dimensions: LxWxH: ---
How to use of XY-IT0V Current to Voltage Convertor Module
- Jumper Configuration: Set the desired output voltage by adjusting jumpers on J1 according to the table.
-
Adjusting Output Voltage:
-
Use the ZERO potentiometer to set the output voltage for minimum input current (4mA or 0mA).
-
Use the SPAN potentiometer to adjust the output voltage for maximum input current (20mA).
-
-
Power On: Ensure D2 indicator is on after powering the module.
-
Connection: Connect the current signal input and monitor the corresponding voltage output.
