XT90PW Connector for LiPo Battery
SAVE
As low as $1.2500
In stock
Only %1 left
SKU
CAB-29-004
Ships in 2-3 business days, then:
Free delivery in10-15 days by YunExpress on orders over $35.
Free delivery in5-7 days by DHL on orders over $200.
More shipping info
Shop with confidence Learn More
XT90 Connector for LiPo Battery Previous

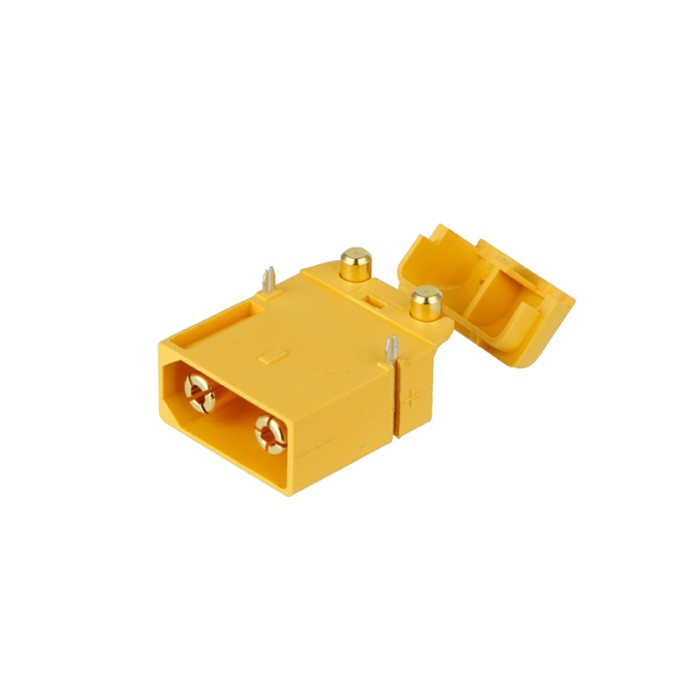

The XT90PW Connector Male-Female Pair for LiPo Battery is a high-quality product manufactured by AMASS. Designed for reliable and safe connections, this connector pair is ideal for use with regulators, chargers, meters, and battery packs. The XT90PW-M model features gold-plated brass contacts, ensuring excellent conductivity and durability. With a continuous current rating of 30A and a pulse current rating of 60A, it can handle demanding power applications. The connectors are designed for mounting on PCBs and comply with RoHS, CE, and ISO certifications, making them a trusted choice for various electronic applications.
Specifications of XT90PW Connector Male-Female Pair for LiPo Battery
-
Manufacturer: AMASS
-
Model: XT90PW
-
Connector Type:
-
Male
-
Female
-
-
Operation Voltage: 500V DC
-
Operation Current:
-
Continuous Current: 30A
-
Pulse Current: 60A
-
-
Dimensions: 25.4x21.3x10.2mm
-
Number of Connections/Disconnections: 1000 times
-
Internal Resistance: 0.30mΩ
-
Degree of Insulation: PA66
-
Flammability Classification: UL94-V0
-
Socket Mounting: On PCB
-
Certification: RoHS, CE, ISO
-
Recommended Use: Regulators, chargers, meters, battery packs
-
Contact Material: Gold-plated brass
-
Operating Temperature: -20ºC to 120ºC
Datasheet of XT90PW Connector Male-Female Pair for LiPo Battery
Datasheet of XT90PW Connector Male-Female Pair for LiPo Battery
