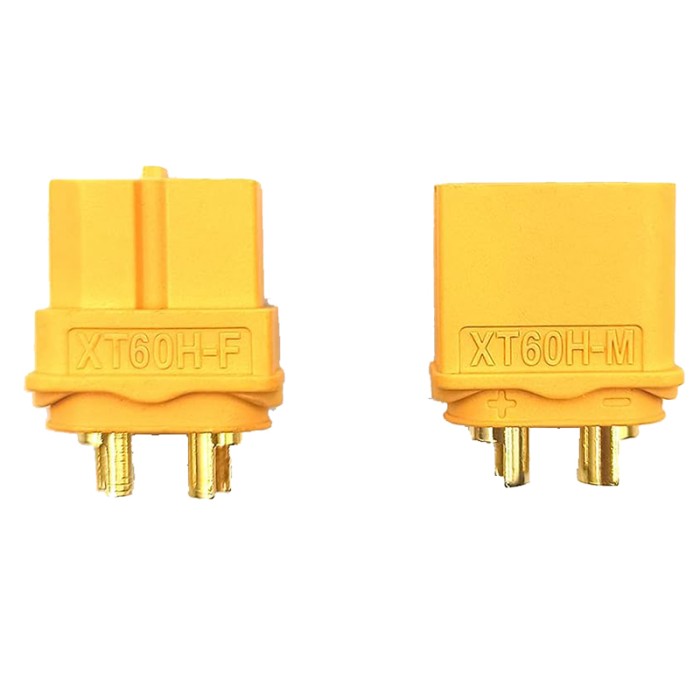

The XT60H Connector Male-Female Pair, manufactured by AMASS, is designed for use with LiPo batteries. Known for its reliable performance and high current handling, this connector pair is widely used in RC applications, drones, and other high-power electrical systems. It offers easy mechanical and electrical mounting with robust construction and gold flash contact plating for enhanced conductivity and durability.
Specifications of XT60H Connector Male-Female Pair for LiPo Battery
-
Manufacturer: AMASS
-
Connector Type: Male and Female
-
Number of Pins: 2
-
Contact Plating: Gold flash
-
Color: Yellow
-
Operation Voltage: Up to 500V
-
Operation Current:
-
Current Rating: 45A
-
Maximum Current: 60A
-
-
Dimensions: 16.4x9.2 mm
-
Flammability Rating:
-
ECE R-118: Applicable to fire testing of materials used in motor vehicles
-
UL94: Assessing flammability of plastic materials, UL94V-0
-
-
Operating Temperature: -20°C to 120°C
-
Mechanical Durability: 1000 cycles
-
Body Material: Polyamide
-
Contact Material: Brass
Datasheet of XT60H Connector Male-Female Pair for LiPo Battery
Datasheet: XT60H Connector Datasheet
