XH-W1209 Digital Thermostat - Temperature Control Switch Module
$1.0700
In stock
SKU
SEN-10-038
Volume discounts:
- +50 5 % $1.0200
- +100 7 % $0.9900
- +300 10 % $0.9600
- +500 13 % $0.9300
- +1000 15 % $0.9100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
YwRobot Water Level Sensor Module Previous

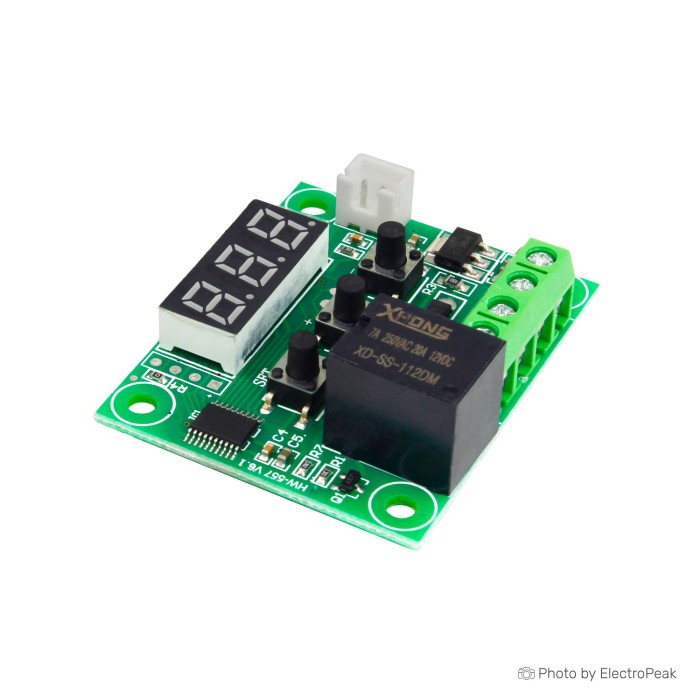

XH-W1209 Digital Thermostat is a temperature control switch module with a digital display for monitoring and control. It supports temperature control switching through an onboard relay and uses a waterproof NTC sensor input. The module provides a clear digital readout and includes onboard buttons for setting and adjustment. It is designed for temperature-based relay switching with selectable operating modes and configurable parameters.
Features of XH-W1209 Digital Thermostat - DC12V, 10A Relay, 0.28 Inch Blue Display
- Digital temperature control switch
- Waterproof NTC sensor input
- Onboard relay output
- 0.28 inch blue display
- Three-button adjustment
- Cooler and heater modes
Specifications of XH-W1209 Digital Thermostat - DC12V, 10A Relay, 0.28 Inch Blue Display
- Model: XH-W1209
- Temperature range: -50 to 110 degrees Celsius
- Thermostat accuracy: 0.1 degrees Celsius
- Resolution: 0.1 degrees Celsius
- Update rate: 0.55 Hz
- Input voltage: DC12V
- Measurement input: NTC waterproof sensor
- NTC resistance: 10K 0.5%
- Measurement temperature range: -50 to 110
- Output range: 10A relay
- Environmental humidity: 20% to 85%
- Ambient temperature: -10 to 60 degrees Celsius
- Dimensions: 48x40mm
- Display type: 0.28 inch blue
- Temperature probe wire: NTC10K 0.5 meter (waterproof)
- Output current: 20A (Max)
- Temperature control mode: ON / OFF
How to Use XH-W1209 Digital Thermostat - DC12V, 10A Relay, 0.28 Inch Blue Display
- Press SET to enter temperature setting.
- Use + or - to adjust the value.
- Press SET again to confirm and return.
More Info
- LED indicator shows relay status.
- P0 selects Cooler or Heater mode.
- P1 sets hysteresis.
- P2 sets maximum temperature.
- P3 sets minimum temperature.
- P4 calibrates temperature.
- P5 sets relay off delay time from 1 to 10 minutes.
- P6 sets the alarm temperature.
| Accuracy | 0.1 °C |
|---|---|
| Humidity Range | 20% to 85% |
