XGZP6897A Micro Differential Pressure Sensor
$11.9500
In stock
SKU
SEN-08-030
Volume discounts:
- +25 4 % $11.4700
- +50 6 % $11.2300
- +100 8 % $10.9900
- +300 10 % $10.7500
- +500 12 % $10.5100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HP206C Waterproof Ceramic Air Pressure/Altitude/Temperature Sensor Previous

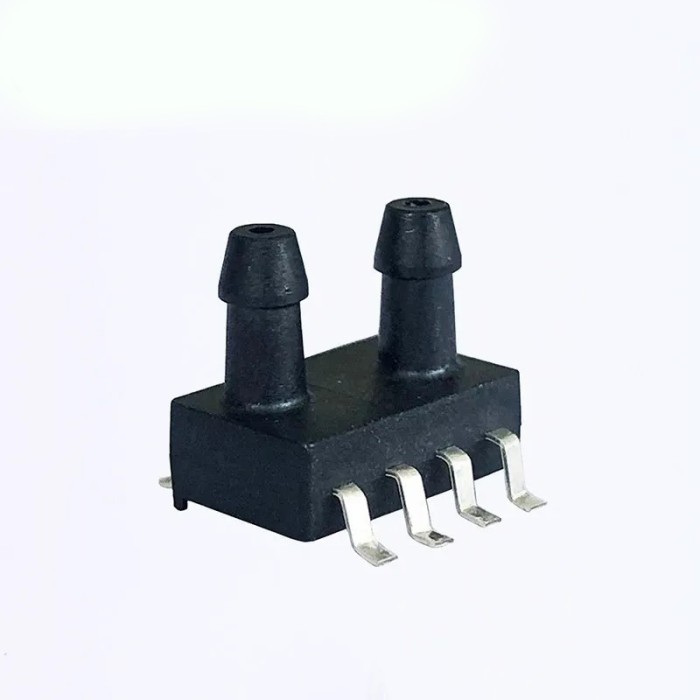

The XGZP6897A Micro Differential Pressure Sensor is a compact sensor for measuring small pressure differences. It provides analog output and precise differential pressure readings for pressure monitoring applications. The sensor is available with customizable pressure ranges and supports optional 5V or 3.3V power supply. It is designed for accurate sensing with low operating current and a wide operating temperature range. This XGZP6897A Micro Differential Pressure Sensor suits medical devices, HVAC systems, air flow measurement, and industrial automation.
Features of XGZP6897A Micro Differential Pressure Sensor
- Micro differential pressure sensing
- Customizable pressure ranges
- Analog output signal
- High accuracy
- Low operating current
Specifications of XGZP6897A Micro Differential Pressure Sensor
- Pressure Range: Customizable ranges available (e.g., ±2 kPa, ±5 kPa)
- Output Signal: Analog output (0.5～4.5/0.2～2.7)
- Accuracy: ±0.5% FS (Full Scale)
- Operating Voltage: Optional 5V or 3.3V Power Supply
- Operating Current: <3mA
- Operating Temperature: -20°C to 100°C
- Dimensions: 11x10.8x9.61mm
- Applications: Medical devices, HVAC systems, air flow measurement, and industrial automation requiring precise differential pressure sensing
How to Use XGZP6897A Micro Differential Pressure Sensor
- Apply the sensor within the supported pressure range.
- Connect the sensor to a 5V or 3.3V power supply.
- Read the analog output signal for differential pressure measurement.
More Info
- Datasheet link is provided in the product information.
- Product dimensions are 11x10.8x9.61mm.
