Arduino Data Logging Recorder Shield
$1.5900
In stock
SKU
misc-03-002
Volume discounts:
- +50 5 % $1.5100
- +100 7 % $1.4800
- +300 9 % $1.4400
- +500 12 % $1.4000
- +1000 14 % $1.3600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SD Card Reader/Writer Module Previous

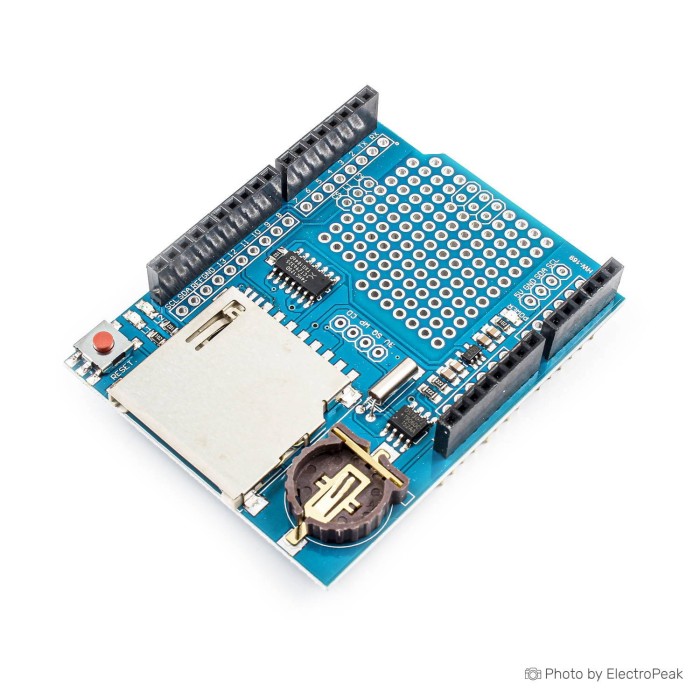

Arduino Data Logging Recorder Shield is a data logging module designed for Arduino projects with SD card and real-time clock support. It works with SD cards in FAT16 or FAT32 format and includes an interface card. A 3.3V level shifting circuit is included to help prevent damage to the SD card. The onboard controller uses a 3.3V voltage reference for reliable SD card operation. Sample code, a library, RTC support, and SD support are included to help you get started quickly.
This Arduino Data Logging Recorder Shield also provides a soldering area for circuit or sensor connections. It supports time holding through the real time clock even when there is no connection for Arduino. Battery backup is supported for many years.
Features of Arduino Data Logging Recorder Shield
- SD card support
- FAT16 or FAT32 format support
- 3.3V level shifting circuit
- Real time clock support
- Battery backup support
- Soldering area included
Specifications of Arduino Data Logging Recorder Shield
- SD card FAT16 or FAT32 format
- Interface card
- 3.3 pegelumsetzer V circuit
- Real time clock (RTC)
- Battery backup
- Sample code included
- Library included
- RTC support
- SD support
- Soldering joint forming area
- Onboard controller
- 3.3V voltage reference
- Operating Voltage: 3.3V
- Battery: CR1220 3V
- Size: 68x52x19mm
- Arduino ADK support
- Arduino duemilanove support
- Arduino diecimila support
- Arduino Leonardo / R3 or greater support
- ADK giant R2 / low or not supported
How to Use Arduino Data Logging Recorder Shield
- Install the shield on a compatible Arduino board.
- Insert an SD card formatted as FAT16 or FAT32.
- Use the included sample code and library to begin logging.
More Info
- The RTC keeps time even without an Arduino connection.
- Battery backup is supported by a CR1220 3V battery.
| Platform | Arduino Mega,Arduino Uno |
|---|---|
| Interface Type | I2C,SPI |
| Operating Voltage (V) | 3.3V |
| Dimensions (mm) | 68x52x19mm |
| Mounting Type | Plug-in shield |
| Function | Data Storage |
| Memory Card | SD card |
| Sensor Type | RTC |
