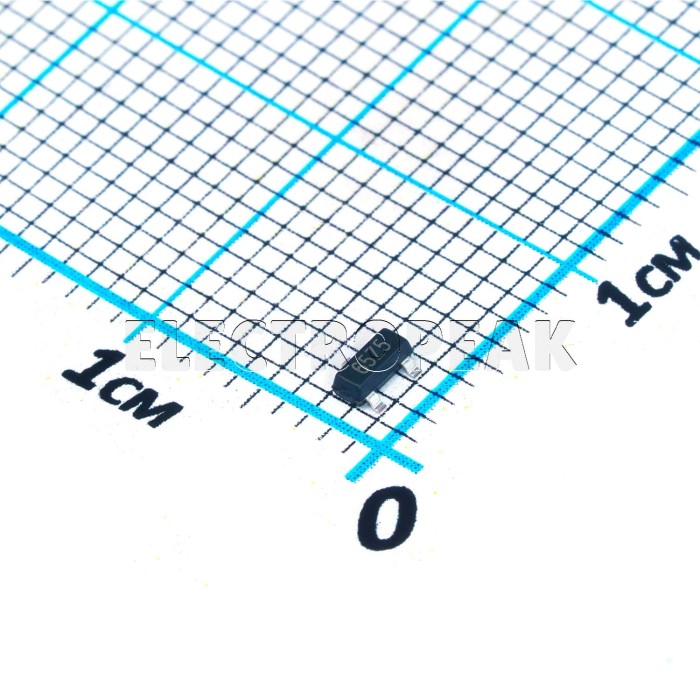

XC6206P302MR, LDO Voltage Regulator, SOT-23-3
$0.0180
In stock
SKU
S1-0065
Volume discounts:
- +500 6 % $0.0170
- +5000 11 % $0.0160
XC6206P302MR, LDO Voltage Regulator, SOT-23-3 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LM1117 3.3V, LDO Voltage Regulator, SOT-223-3 Previous
XC6206P302MR LDO Voltage Regulator is a low-dropout linear voltage regulator with a fixed 3V output. It accepts an input voltage range of 1.8V to 6V and provides up to 200mA output current. The device is supplied in an SOT-23-3 package. It also features approximately 1µA quiescent current and a maximum dropout voltage of 0.68V at 100mA.
Features of XC6206P302MR LDO Voltage Regulator - 3V, 200mA
- Fixed 3V output
- 200mA output current
- Low quiescent current
- Low dropout voltage
- SOT-23-3 package
Specifications of XC6206P302MR LDO Voltage Regulator - 3V, 200mA
- Input Voltage: 1.8V to 6V
- Output Voltage: Fixed 3V
- Output Current: 200mA constant
- Quiescent Current: Approximately 1µA
- Dropout Voltage: Maximum 0.68V at 100mA
- Package: SOT-23-3
How to Use XC6206P302MR LDO Voltage Regulator - 3V, 200mA
- Apply an input voltage within the 1.8V to 6V range.
- Connect the regulator in the SOT-23-3 circuit design.
- Use the fixed 3V output for the connected load.
More Info
- Low-dropout linear voltage regulator
- Suitable for low-power applications
| Package | SOT-23-3 |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| Mounting Type | SMD/SMT |
| Components - Type | LDO Voltage Regulators |
