WS2811 LED Driver Board
$0.2100
In stock
SKU
MOD-09-021
WS2811 LED Driver Board is available to buy in increments of 5
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
WS2813B LED Strip - IP30 - 30LED/m - 1m Previous

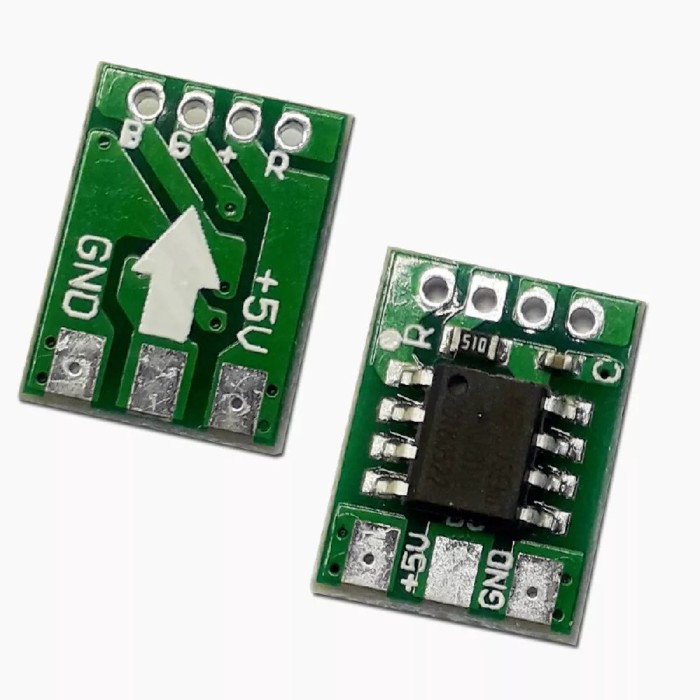

The WS2811 LED Driver Board is a compact, high-performance module designed to control RGB LEDs with 256 levels of grayscale using a single-wire signal. Built with the WS2811 constant current IC, it ensures stable performance, consistent brightness, and accurate color across your LED projects. Ideal for DIY lighting, signage, and decorative applications.
Specifications of WS2811 LED Driver Board
- IC Type: WS2811, high-speed mode
- Gray Scale: 256 levels
- Operating Voltage: DC 5V
- Power Max: 296mW
- Type: Wenen 809 RGB+
- LED Type: F8MM 4 Pin Full Color RGB LED Bead
- Forward Voltage (VF): Red: 2.0–2.3V, Green: 3.1–3.3V, Blue: 3.1–3.3V
- Wavelength: Red: 622–626nm, Green: 522.5–525nm, Blue: 460–462.5nm
- Dimensions: 15x15xmm
Datasheet of WS2811 LED Driver Board
Datasheet: Not available.
| Platform | Arduino Mega, Arduino Uno, Arduino Nano, Raspberry Pi 3, Raspberry Pi 4, Raspberry Pi 5 |
|---|---|
| Interface Type | Digital, RGB |
| Operating Voltage (V) | 5V |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 15x15 mm |
| Mounting Type | Soldering |
| Channel Count | 1 |
| Control Signal | Digital |
| Chipset | WS2811 |
| LED Count | 1 |
| Display Type | LED |
| Material | PCB |
| Input Type (AC/DC) | DC |
| Protocols | WS2811 1-wire |
