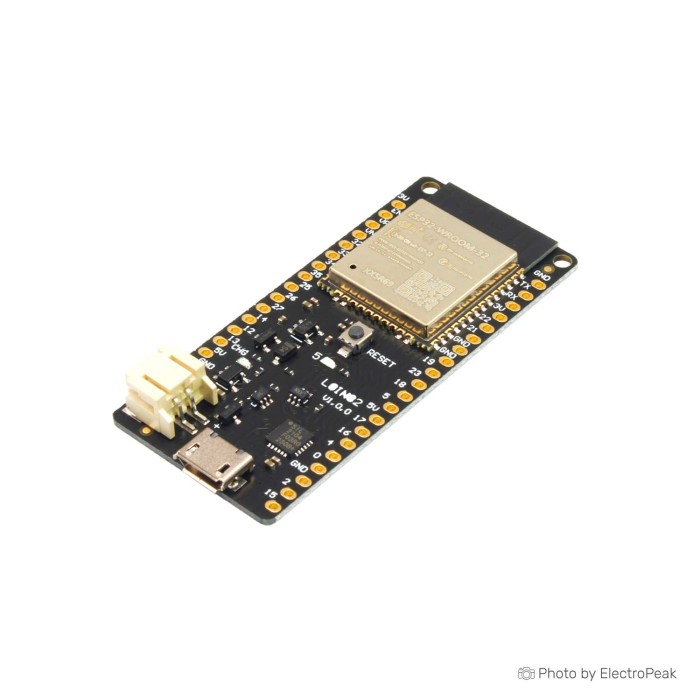

ESP32 CP2102 WiFi Bluetooth Development Board
$6.2500
In stock
SKU
COM-03-050
Volume discounts:
- +25 0 % $6.2300
- +50 0 % $6.2200
- +100 1 % $6.2100
- +300 1 % $6.1900
- +500 1 % $6.1800
Add an Accessory:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ESP32-A1S ESP32S Audio WiFi Bluetooth Module Previous
The ESP32 CP2102 WiFi Bluetooth Development Board is a development board built around the ESP-WROOM-32 module from Espressif. It provides WiFi and Bluetooth connectivity in a compact development format. The board includes a CP2102/4 USB-UART interface for connection with a computer. It also includes a LiPo battery interface and supports battery-powered ESP32 projects. The board is suitable for IoT and interactive system projects, and it supports Arduino IDE programming.
Features of ESP32 CP2102 WiFi Bluetooth Development Board
- WiFi and Bluetooth connectivity
- CP2102/4 USB-UART interface
- LiPo battery interface
- Arduino IDE support
- Capacitive touch sensor support
Specifications of ESP32 CP2102 WiFi Bluetooth Development Board
- Wireless interface: WiFi 802.11 b/g/n and Bluetooth 4.0 LE
- Flash memory: 4 megabytes
- Battery interface: maximum charging current 500 milliamperes
- Battery interface: 3.7 volts
- Processor: dual-core Tensilica LX6
- Processor frequency: 240 megahertz
- Internal SRAM: 520 kilobytes
- Operating voltage: 3.3 volts DC
- I/O pins: 19
- Analog input pins: 6
- USB-UART interface: CP2102/4
- Size: 50x25x7 millimeters
- Weight: 6 grams
- ESP32 model: ESP-WROOM-32
- Flash memory: 4MB with support for up to 16MB
- Interfaces: 26 digital I/O
- Interfaces: 18 analog inputs
- Interfaces: 3x UART
- Interfaces: 3x SPI
- Interfaces: 2x I2S
- Interfaces: 2x DAC
- Interfaces: 2x I2C
- Sleep mode consumption: 5 microamps
- Internal sensors: Hall effect
- Internal sensors: 10 inputs for capacitive touch interface
How to Use ESP32 CP2102 WiFi Bluetooth Development Board
- Connect the board to a computer through the USB-UART interface.
- Program the board using Arduino IDE if required.
- Use the LiPo battery interface when battery-powered operation is needed.
More Info
- Based on the ESP-WROOM-32 module from Espressif.
- Designed for development, IoT, and interactive system projects.
| MCU/SoC | ESP32 |
|---|---|
| Product Family | ESP32 |
| Architecture | Tensilica Xtensa LX6 |
| CPU Cores | Dual-core |
| Clock Speed (MHz) | 240 MHz |
| Flash | 4 MB |
| SRAM | 520 KB |
| External Memory | Support for up to 16MB |
| GPIO Pins | 26 |
| SPI interface Pins | 3 |
| I2C interface Pins | 2 |
| UART interface Pins | 3 |
| USB Ports | 1 |
| CAN Bus Support | Yes |
| Ethernet Support | No |
| ADC Channels | 18 |
| DAC Channels | 2 |
| PWM Channels | 16 |
| Timers Count | 4 |
| Operating Voltage (V) | 3.3V |
| GPIO Voltage (V) | 3.3V |
| GPIO Current (mA) | 40 mA |
| Sleep Current (µA) | 5 uA |
| Wireless | Bluetooth, Wi-Fi 802.11 b/g/n |
| Form Factor | 50x25x7 mm |
| IDE Support | Arduino IDE |
| Weight (g) | 6g |
| Input Voltage (V) | 5V via USB, 3.7V via LiPo battery |
| Antenna Type | Internal Antenna |
| Bluetooth Ver. | 4.2 |
| Encryption | Supports AES, SHA2, RSA-4096 encryption |
