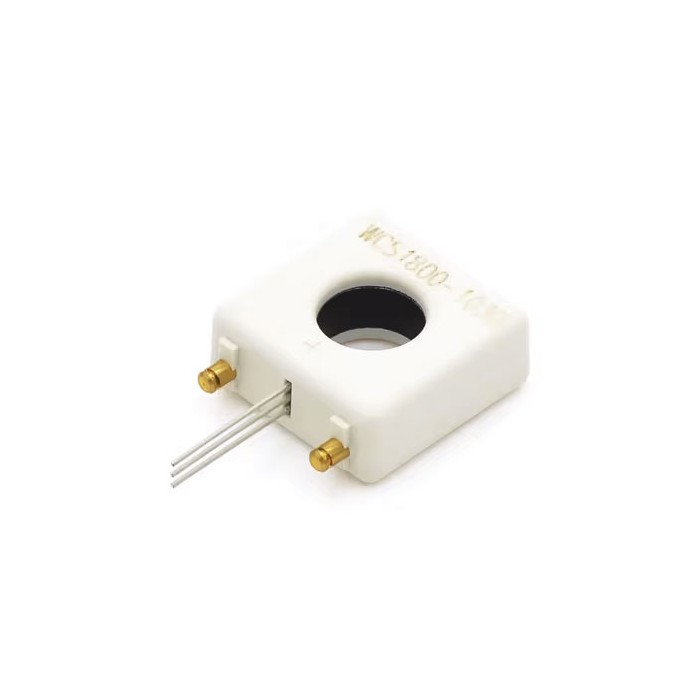

WCS1500/1600/1700/1800 Hall Current Sensor

The WCS1500/1600/1700/1800 Hall Current Sensor is a Hall effect current sensor for AC and DC current measurement. It provides galvanic isolation and an analog voltage output proportional to the measured current. The WCS1500/1600/1700/1800 Hall Current Sensor is suitable for power monitoring, battery management systems, motor control, and industrial automation. Its compact 31x37mm size supports straightforward integration in electronics and robotics projects.

Features of WCS1500/1600/1700/1800 Hall Current Sensor

• AC and DC current measurement
• Hall effect sensing
• Galvanic isolation
• Analog voltage output
• Compact form factor

Specifications of WCS1500/1600/1700/1800 Hall Current Sensor

• Operating Voltage: 3~5V
• Operating Voltage: 5V recommended
• Detection current range: WCS1500 0A~200A
• Detection current range: WCS1600 0A~100A
• Detection current range: WCS1700 0A~70A
• Detection current range: WCS1800 0A~35A/x
• Output Signal: Analog voltage proportional to the measured current
• Sensitivity: 33mV/A
• Isolation Voltage: 4000V RMS
• Operating Temperature: -20°C to 85°C
• Dimensions: 31x37mm
• Applications: Power monitoring
• Applications: Battery management systems
• Applications: Motor control
• Applications: Industrial automation

How to Use WCS1500/1600/1700/1800 Hall Current Sensor

1. Provide the operating voltage within the 3~5V range.
2. Connect the sensor output to an analog input for current reading.
3. Select the appropriate model based on the required detection current range.

More Info

• WCS1600 datasheet is available.
• WCS1700 datasheet is available.
• WCS1800 datasheet is available.
