Waveshare USB to TTL
SAVE
As low as $9.5000
In stock
Only %1 left
SKU
MOD-10-017
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CH340 Isolated USB to TTL (Serial) Module With USB-A Connector Previous

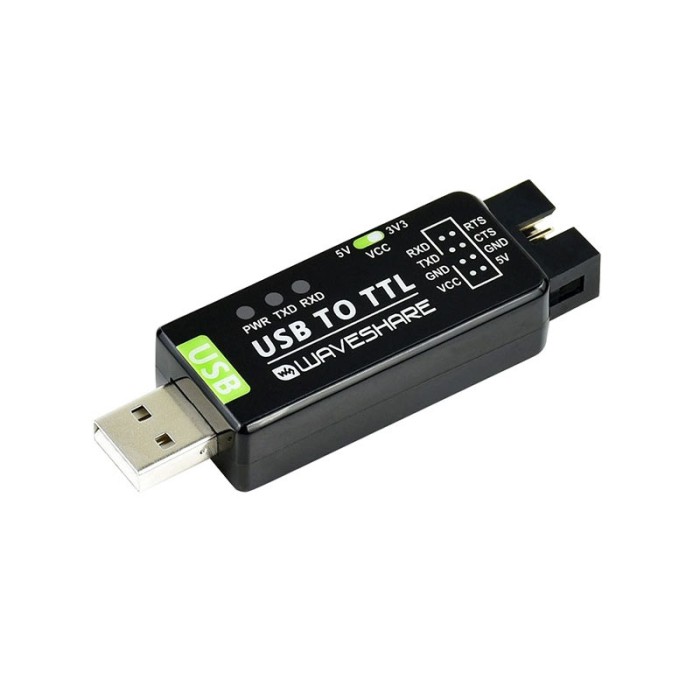

The Waveshare USB to TTL is an industrial-grade USB-to-UART (TTL) serial cable that enables communication between a USB host and a device that uses TTL UART communication. Available in different configurations, including a Type-C variant, the converter is based on the FTDI original FT232RNL chip, ensuring high-speed data transmission up to 3Mbps. With built-in protection features like ESD protection and self-recovery fuse, this converter is suitable for industrial applications where reliable serial communication is needed.
Specifications of Waveshare USB to TTL
-
Product Category: Industrial USB-to-TTL serial cable
-
Chip Scheme: FTDI original FT232RNL
-
Host Port: USB
-
Connector: USB-A (Normal variant) / USB Type-C (Type-C variant)
-
Protection: Self-recovery fuse, ESD protection
-
-
Data Rate: 300bps ~ 3Mbps
-
Device Port: UART
-
Normal Variant Connector: 8-pin fool-proof header
-
Type-C Variant Connector: Separated 6-pin female header
-
Protection: IO protection diode
-
-
Indicators:
-
PWR: Power indicator (turns on when there is USB connection and voltage detected)
-
TXD: TX indicator (turns on when the USB port is sending data)
-
RXD: RX indicator (turns on when the device port is sending data back)
-
-
Cable Length: 1 meter (PVC sheath)
Manufacture of Waveshare USB to TTL
| Interface Type | USB, UART |
|---|---|
| Operating Voltage (V) | 5V |
| Operating Temp (°C) | -40 to 85 |
| Data transmission rate | 300bps ~ 3Mbps |
| Standard | TTL |
| Voltage Levels | 3.3V, 5V |
| Chipset | FT232RNL |
| Protection | ESD protection, IO protection diode, Self-recovery fuse |
| Direction | Bidirectional |
| Pins | 8-pin, 6-pin |
| Indicator LEDs | PWR, RXD, TXD |
